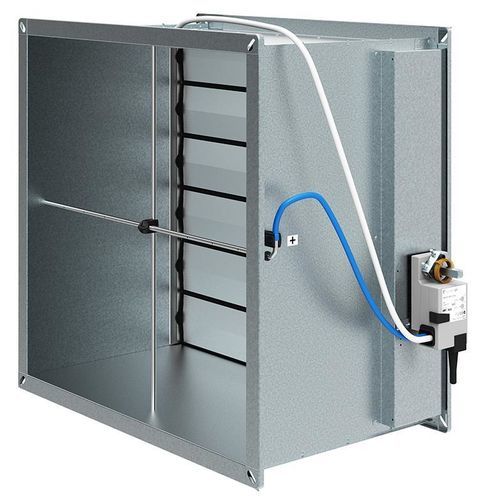

Air flow regulator OPTIMA-S-FC
Add to favorites
Compare this product
Description
Overview
Key features
Construction & materials
Sizing & application
Product details
Technical specifications
- Compact rectangular VAV controller designed to manage variable cooling and heating loads for single-zone applications.
- Optimised for single-zone control with supply and return configurations in Master and Slave setups.
- Suitable for offices, hotel rooms, meeting rooms and larger public or industrial halls with varying demand.
Key features
- Compact design
- Galvanised steel casing
- Robust construction
- Noise reduction
- Opposed-action aerofoil aluminium blades with rubber gaskets
- Blade axes in self-lubricating polymer bearings
- Optional polymer foam insulation (insulated version: 19 mm polymer foam covered by galvanised steel protection sheet)
Construction & materials
- Galvanised sheet steel casing
- Extruded aluminium aerofoil blades
- Flanged mounting frame integrated in the casing for increased sturdiness
- Optional 19 mm polymer foam insulation
Sizing & application
- Available sizes (mm): 200×100 up to 1200×1000 in 50 mm steps (height and width)
- Suitable for supply air or return air applications
Product details
- Typical factory settings (example shown): Size 1000×1000; Without insulation; Control type: BELIMO 0(2)...10V, MP-BUS, NFC, (BP); Accessories: not selected; Airflow direction: Supply; Factory Vmin: 7200 m³/h; Factory Vmax: 32400 m³/h; Vnom: 39600 m³/h.
Technical specifications
- Communication: 1×AI, 1×AO, MP-BUS
- Weight: 29.55 kg
- Insulation: optional polymer foam 19 mm (insulated version covered by galvanised steel sheet)
- Blade material: extruded aluminium aerofoil blades with rubber gaskets
- Bearings: self-lubricating polymer bearings for blade axes
- Mounting: flanged mounting frame integrated in casing
- Available sizes: 200×100 up to 1200×1000 (steps of 50 mm)
