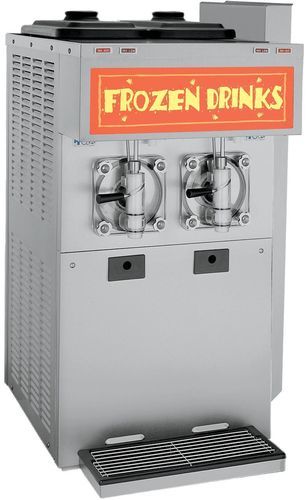

Countertop beverage dispenser MODEL 432

commercial

Features

• Vary your menu by offering shakes and smoothies or frozen cocktails, fruit juices, coffees, cappuccino, and tea slush beverages with medium capacity.
• Approved for dairy and non-dairy.
• Ability to use for frozen cocktails.
• Indicator Lights - Add Mix light alerts the operator to add mix. When the Mix Out light flashes, the unit automatically shuts down to prevent damage.
• Overall simple operation.

Product Highlights
Countertop frozen beverage freezer designed for frozen beverages, smoothies and shakes; medium capacity and multi-use operation.

Specifications
Finished Products
Frozen Beverage, Smoothies, Shake

Installation
Countertop

Number of Flavors
2

Freezing Cylinder QTY
2

Freezing Cylinder Size (qt/l)
4 / 3.8

Hopper Qty
2

Hopper Size (qt/l)
12 / 11.4

Mix Delivery Systems
Gravity

Refrigeration Control
Viscosity

Dimensions (w/d/h)
19-1/16 in (w) / 484 mm (w)
27-1/2 in (d) / 699 mm (d)
36-5/8 in (h) / 930 mm (h)

Net Weight
305.0 lbs / 138.3 kg

Technical specifications

• Finished Products: Frozen Beverage; Smoothies; Shake
• Installation: Countertop
• Number of Flavors: 2
• Freezing Cylinder Quantity: 2
• Freezing Cylinder Size: 4 qt / 3.8 l
• Hopper Quantity: 2
• Hopper Size: 12 qt / 11.4 l
• Mix Delivery System: Gravity
• Refrigeration Control: Viscosity
• Dimensions (W x D x H): 19-1/16 in / 27-1/2 in / 36-5/8 in (484 mm / 699 mm / 930 mm)
• Net Weight: 305.0 lbs / 138.3 kg
