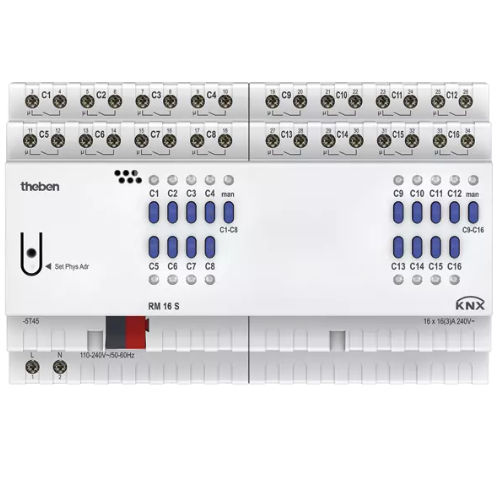

KNX switch actuator RM 16 S

DIN railcommercialindoor

16-way switching actuator FIX2 LED switching status display for each channel Manual operation on device (even without bus connection) Adjustable characteristics: e.g. switching, delayed switching, pulse function Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene Switching functions: On/Off, pulse, On/Off delay, staircase light with warning Logical links: e.g. lock, AND, release, OR Operating voltage KNX - Bus voltage, ≤4 mA Operating voltage - 110 – 240 V AC 50 – 60 Hz Frequency - 50 – 60 Hz Stand-by consumption - ~0.5 W Installation type - DIN rail Width - 8 modules Type of connection - KNX bus terminal Max. cable cross section - Solid wire: 0.5 mm² (Ø 0.8) to 6 mm² | Stranded wire with end sleeve: 0.5 mm² to 4 mm² Number of channels - 16 Type of contact - NO contact, 16 A, 3 A Opening width - < 3 mm Resistive load - 3680 W Incandescent/halogen lamp load - 2000 W Fluorescent lamp load (conventional) parallel-corrected - 1300 W (140 µF) Fluorescent lamp load (conventional) not corrected - 2000 VA Fluorescent lamp load (electronic ballast) - 1200 W Energy saving lamps - 300 W LED lamp 8 W - 600 W Inrush current - max. 800 A / 200 µs Voltage output - 240 V AC Switching output - Potential-free Switching of various phases - Possible Suitable for SELV - Yes if all channels switch at SELV C load - Type - Module FIX2 Ambient temperature - -5°C ... 45°C Type of protection - IP 20 Protection class - II
