Thermal insulation TETRIS
extruded polystyrenerigid panelfor flooring

thermal insulation
thermal insulation
thermal insulation
thermal insulation
thermal insulation
Add to favorites
Compare this product


extruded polystyrene
rigid panel
for flooring
Technical characteristics
without vapor barrier

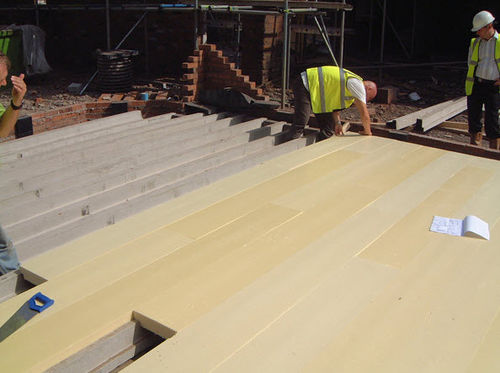

TETRiS Precast Concrete Floor Insulation The TETRiS system of concrete floor insulation comprises precast concrete beams used in conjunction with TETRiS insulation blocks to provide a rapid economical thermal floor solution. A similar system to the concrete beam and block floor, the TETRiS floor is designed to solve high U-value requirements at ground floor level. The thermal flooring is built up using prestressed concrete beams supporting the TETRiS insulated blocks spanning between T beams. These are available in sizes to suit various spans and loads. When connected together the Cellecta insulating blocks form a flat fixed level above the concrete beams with no cold bridges. A concrete screed is placed over the composite flooring to provide the durable concrete surface associated with suspended concrete flooring. The TETRiS insulated floor blocks are designed to form end closures and screed edges avoiding potential cold bridge areas.
