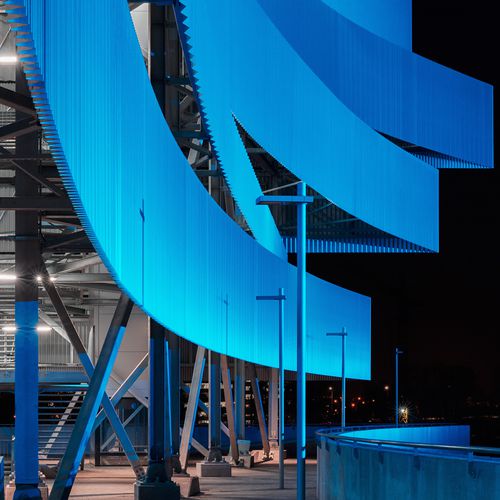

Prefabricated panel curtain wall THE BASE BACKING WALL

steelstainless steelmetal

The BASE solution represents the so-called Backing-wall Insulated Façade System, which is made up of customized unique product formula of Trimoterm FTV panel. The robust single-span system works as a load-bearing wall, where an additional final cladding is fixed through the Omega Rails. The internal steel sheet of the panels remains intact in the whole central area, as in this area the Omega Rails are fixed only on the external steel sheet. The system is flexible and modified for the building for horizontal or vertical installation. Trimoterm FTV panel is high-quality fireproof and sustainable product with 99% recyclability. Fixing material for panels has load-bearing capacity according to approvals for Trimoterm FTV (AbZ Nr. Z-10.49-624); for Omega Rails has load- bearing capacity according to testing and approval by iS-engineering GMbH in line with ETA - 10/0198. Sealing material continuously laid ensures airtightness and water tightness at the joints between the structure and the panel and between the panel and Omega Rail. Steel sheet flashings finalize details according to the Backing-wall insulated facade system. Omega Rails is substructure that carries the weight of the final cladding. Ventilated facade function, flexible fast installation, smooth & flat internal surface, prefabrication, exceptional thermal transmittance, enables replacement of the final cladding during the building operating time, load capacity of up to 60 kg/m²
