Aluminum gazebo YPE

PVCfabric roofPVC roof

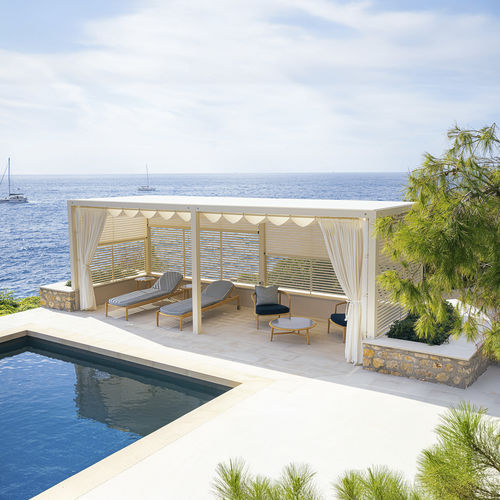

Our Mood range expands to meet the ever-changing needs of our customers with Mood Ype. The load-bearing structure, made entirely from 120 x 120 mm section aluminium profiles, has greater stability and sturdiness, while the cover sheet, which can be retracted manually, can reach a maximum area of 5 x 5 metres. Mood Ype provides numerous new configurations and customisations: alongside the traditional side curtains and the lighting system with LED strips, in fact, we have added shady side panels, vertical reller curtains and lastly the possibility to add a perimeter gutter channel for the collection of rainwater. The perimeter gutter, which considerably increases the product’s performance level, transforms the pavilion into a perfect response even for the most demanding Contract solutions. Technical info: pillar section 120 x 120 x 2 mm beam section 120 x 120 x 2 mm possibility of custom production up to a maximum of 500 x 500 cm extruded aluminium profiles, primary alloy UNI6060 and stainless steel screws epoxy powder coating resin polyester, UV-resistant customized powder coating available in other RAL color on request (prior approval of our technical office) manual retractable roof runoff of rain water guaranteed by the inclination of the ducts in the cover cloth fabric standard awning in PVC STAM, sealed, waterproof, flame retardant class 2/UNI9177
