Self-supporting pergola LODGE

PVCaluminumstainless steel

Overview

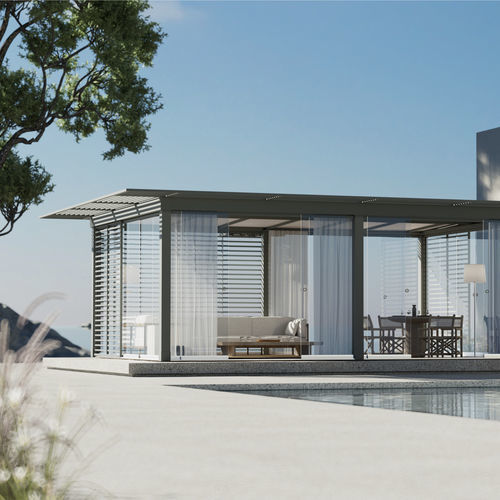

Lodge is a sophisticated microarchitecture designed to extend indoor comfort to outdoor spaces. As a multifunctional shelter, it protects from sun, wind and rain and creates a comfortable, year‑round living environment. Solid profiles and clean lines allow integration in residential or contract settings; it can serve as a workspace, daily relaxation area or guest space.

Construction and finishes
Self-supporting structure in extruded aluminium profiles (primary alloy UNI6060) with stainless-steel accessories. UV-resistant polyester resin-based epoxy powder coating in 12 standard colours. Fixed waterproof cover available as PVC Flexlight Lodge 6002 sheet or 40 mm thick sandwich panel; sandwich panels can be neutral or painted to match the structure. Roof slope, perimeter gutters and internal channeling to pillars manage stormwater.

Dimensions and customization
The structure is made to measure. Typical maximum sizes: Lodge PVC up to 450 x 1200 cm (6 pillars) and up to 450 x 600 cm (4 pillars); LODGE Sandwich up to 500 x 1200 cm (6 pillars) and up to 500 x 600 cm (4 pillars). Specific maxima depend on pillar count and roof type; consult technical specifications.

Functional features
Standard equipment includes robust beam and column profiles, fixed waterproof cover, roof slope and guttering with internal drainage in pillars. Designed to offer interior-like comfort outdoors, Lodge can integrate sealing and shading systems such as sliding glass, sunshade panels and high-quality curtains.

Accessories

• Snow kit for winter reinforcement
• Additional columns for mounting specific accessories
• Acrylic fabric side curtains with zipper, sliding rods and curtain-retainer profiles
• Vertical shade roller blind (Soltis Lounge 96 or recycled Raytent Shade), manual or motorized
• Cristal PVC vertical roller blind with windproof zipper system, 114 mm cassette, manual winch or motorized option
• Screening panels with horizontal slats; sliding version available
• Decorative canopy panels for perimeter beams
• All-glass sliding system without vertical profiles
• Lighting: dimmable LED strip integrated into ridge beam or pendant, wall sconces, pendant chandelier or floor lamp

Coverage (standard options)
PVC Flexlight Lodge 6002 (9 standard colours) or 40 mm sandwich panel (neutral or painted). Stormwater runoff managed by roof slope, perimeter gutters and internal channeling to pillars.

Colours and fabrics
Epoxy polyester powder coating (UV-resistant) available in a wide palette of samples. Flexlight fabric options include several standard colour codes; availability varies with finish and configuration.

Technical specifications

• Product name: Lodge (self-supporting aluminium pergola with fixed waterproof covering and perimeter locking systems)
• Main structure: Extruded aluminium profiles, primary alloy UNI6060; stainless-steel accessories
• Surface treatment: UV-resistant polyester resin-based epoxy powder coating (12 standard colours)
• Beam section: 200 x 200 mm
• Column section: 155 x 155 mm
• Cover options: Flexlight Lodge 6002 PVC fixed waterproof sheet (9 standard colours) or 40 mm thick sandwich panel (neutral or painted)
• Stormwater management: roof slope, perimeter gutters, internal channelization to pillars
• Maximum custom dimensions (indicative):
• Lodge PVC: up to 450 x 600 cm (4 pillars) and up to 450 x 1200 cm (6 pillars)
• LODGE Sandwich: up to 500 x 600 cm (4 pillars) and up to 500 x 1200 cm (6 pillars)
• Standard equipment: self-supporting extruded aluminium structure, powder coating, fixed waterproof cover
• Accessories: snow kit, additional columns, side curtains, vertical roller blinds (manual or motorized), Cristal PVC roller blind, screening panels, decorative canopy, all-glass sliding system, integrated lighting
• Customization: wide range of accessories and finishes for residential and contract contexts
