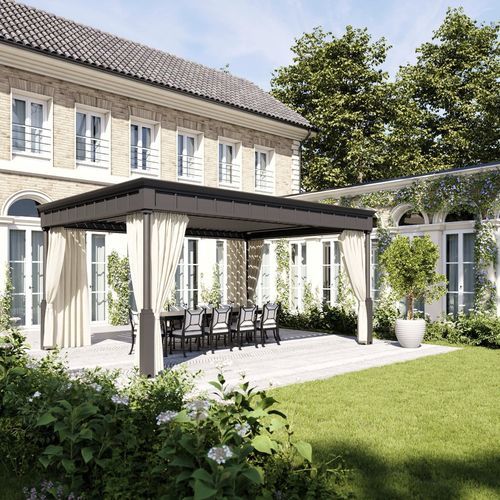

Bioclimatic pergola TIMELESS

self-supportingaluminumgalvanised steel

Product overview
Timeless Bioclimatica is a self-standing bioclimatic pergola combining an engineered steel structure with a motorized adjustable aluminium-slat roof and a decorative perimeter beam. Designed for architectural integration and refined outdoor living, it supports both louvered and fixed sandwich-panel roof options and modular accessory systems.

Main features

• Self-standing main structure in machined steel with hot-dip galvanizing for corrosion resistance and structural strength.
• UV-resistant epoxy polyester powder coating; available in 9 standard colours.
• Aluminium roof composed of adjustable slats with three positions: closed, 90° and 135°, offering ventilation and light control.
• Optional waterproof fixed 40 mm sandwich panel, neutral or painted to match the structure.
• Stormwater management via perimeter gutters and internal channeling to the pillars.
• Cover is not completely watertight (partial waterproofing; drainage via gutters).
• Decorated pillar with variable section (base 150 x 150 mm) and perimeter beam height of 320 mm.
• Custom fabrication possible up to maximum 420 x 560 cm.

Accessories

• Compensating profiles required for installation of sliding glazing and gratings.
• Acrylic fabric side curtains with zipper closure and sliding rods.
• Vertical shade roller blind with manual winch and guide cables, available in Soltis Lounge 96 or recycled acrylic Raytent Shade; motorized option available.
• Screening panels with horizontal slats (40×20 mm stainless steel perimeter profile and 30×20 mm aluminium transoms), available in sliding version.
• All-glass sliding system consisting of sliding glass panels without vertical profiles, weight-relieved on the bottom rail.
• Dimmable LED strip integrated into the inner surface of the perimeter beams.

Colors and fabrics
Finish: epoxy polyester powder coating.

• anthracite
• tundra
• taupe
• mars
• brown
• black
• white 9010
• oyster white 1013
• satin

Technical specifications

• Structure: machined steel, hot-dip galvanised.
• Finish: UV-resistant polyester resin-based epoxy powder coating (9 standard colours).
• Maximum custom size: up to 420 x 560 cm.
• Pillars: decorated pillar with variable section, base 150 x 150 mm.
• Perimeter beam height: 320 mm.
• Roof: aluminium slats adjustable to 3 positions (closed, 90°, 135°); optional waterproof fixed 40 mm sandwich panel.
• Stormwater management: perimeter gutters with internal channelization to pillars.
• Cover characteristics: motorized operation available; cover not completely watertight (partial waterproofing).
• Available accessories: side curtains, vertical roller shades (manual or motorized), horizontal slatted screening panels, all-glass sliding screen, integrated dimmable LED strip, compensating profiles for glazing/gratings.
