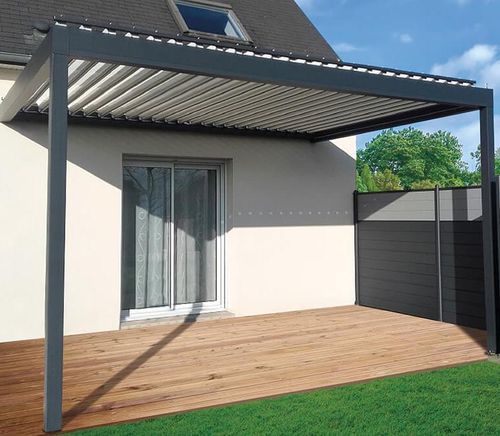

Wall-mounted pergola

extruded aluminumwith mobile slatscustom

H2 BIOCLIMATIC PERGOLA WITH PERPENDICULAR SLATS, CUSTOM-BUILT IN ALUMINUM - Max. projection: 4000mm, - Maximum width: 4576mm, - Total width unlimited in several modules, - Extruded aluminum structure, - Unlimited structure colors (choice of universal RAL), - Extrusion thickness: 2mm to 3mm (depending on profile), - 191mm x 35mm double-wall extruded aluminum blades with reinforced central partition, - Slat rotation 0° to 90°, - Load resistance 45kg/m² - i.e. 720kg/16m², - Blades + Structure with integrated seals, - Feet 105mm x 105mm, height 2500mm (can be cut to size), - Posts up to 3000mm possible, - Slat mounting by clipping system, - Concealed cylinder motorization with multi-channel remote control, - Floor mounting bracket, - Wall and floor mounting, - Stainless steel screws, - Wall-mounted box, - Tilt angle: 0°, - Water drainage through support beam, - Approximate weight for a 4.5m x 4m pergola +/- 420KG, - Made in France, - 5-year warranty, - Free delivery in mainland France, - Lead time 8/10 weeks,
