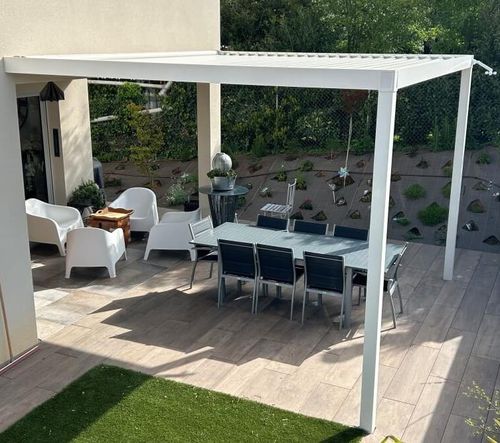

Wall-mounted pergola

aluminumextruded aluminumwith mobile slats

BIOCLIMATIC ALUMINUM PERGOLA L1 LEAN-TO ELECTRIC PARALLEL ADJUSTABLE SLATS MADE TO MEASURE - Max. projection: 3940mm, - Maximum width: 4000mm, - Extruded aluminum structure, - Unlimited structure colors (choice of universal RAL), - Extrusion thickness: 1.5mm to 2mm (depending on profile), - Double-wall extruded aluminum blades 167mm x 35mm with 100% watertight seal, - Blade rotation 0° to 80°, - Load resistance 45KG/m² - i.e. 720KG/16m², - Blades + Structure with integrated seals, - Feet 105mm x 105mm, base height 2500mm (can be cut to size), - Posts up to 3000mm possible, - Blade mounting by clipping system, - Basic wired motorization (waterproof switch), - Extruded aluminum winding tube, diameter 79mm, - Floor mounting bracket, - Wall and floor mounting, - Stainless steel screws, - Wall-mounted profile, - 100% flat roof, - Water drainage through supporting beam, - Approximate weight for a 4m x 4m pergola +/- 350KG, - Made in France, - 10-year warranty,
