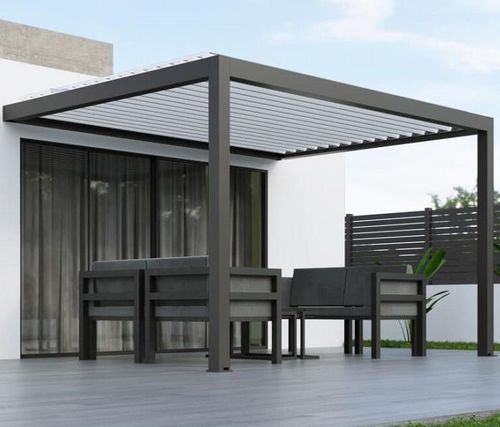

Wall-mounted pergola

extruded aluminumwith mobile slatscustom

CUSTOM-BUILT ALUMINUM S3 BIOCLIMATIC PERGOLA WITH ADJUSTABLE PARALLEL ELECTRIC SLATS - Max. projection: 6029mm, - Maximum width: 4000mm, - Total width unlimited in several modules, - Extruded aluminum structure, - Unlimited structure colors (choice of universal RAL), - Extrusion thickness: 2mm to 3mm (depending on profile), - Extruded aluminum double-wall slats 190mm x 28mm with 2 reinforced central partitions, - Blade rotation 0° to 105°, - Load resistance 50KG/m² - i.e. 800KG/16m², - Blades + Structure with integrated seals, - Feet 120mm x 120mm, base height 2500mm (can only be cut with visible plate), - Posts up to 3000mm possible, - Blade mounting by clipping system, - Concealed jack motor with multi-channel remote control, - Floor mounting bracket, - Wall and floor mounting, - Stainless steel screws, - Wall-mounted box, - Tilt: 0°, - Water drainage through support beam, - Approximate weight for a 4.5m x 6m pergola +/- 630KG, - Wind rating: Class 6 UNE EN 16561, - European manufacture, - 10-year warranty, - Free delivery in mainland France, - Lead time 8 to 10 weeks,
