Hanging pergola H2

extruded aluminumwith mobile slatssun shade louvers

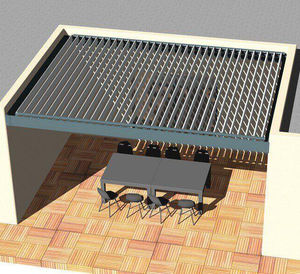

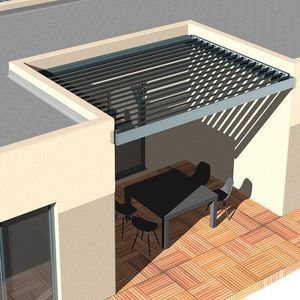

H2 BIOCLIMATIC ALUMINUM PERGOLA BETWEEN WALLS ELECTRICALLY ADJUSTABLE PARALLEL SLATS MADE TO MEASURE Max. projection: 4613mm Max. width: 4000mm Unlimited total width in several modules - Extruded aluminum structure - Unlimited choice of universal RAL structure colors - Extrusion thickness: 2 to 3 mm (depending on profile) - 191x35mm double-wall extruded aluminum slats with reinforced center divider - Slat rotation 0° to 90 - Load resistance 45kg/m² - i.e. 720kg/16m². - Blades + Structure with integrated seals - Feet 105 x 105 mm, height 2500 mm (can be cut to size) - Blade mounting by clipping system - Concealed jack motorization with multi-channel remote control - Ground mounting bracket for post (if required) - Stainless steel screws - Installation between walls: between 2,3,4 walls and L-shaped terrace - Box wall mounting - Tilt angle: 0 - Water drainage through supporting beam - Approximate weight for a 4 x 4 m pergola +/- 380 kg - Made in France - 5-year warranty - Free delivery in mainland France - Indicative delivery time 8/10 weeks
