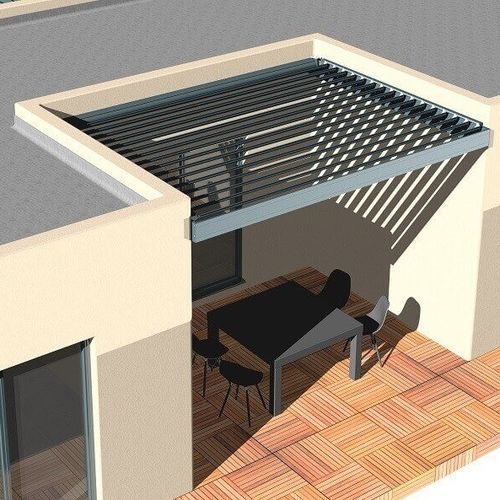

Hanging pergola H3

extruded aluminumwith mobile slatssun shade louvers

H3 BIOCLIMATIC ALUMINUM PERGOLA BETWEEN WALLS ELECTRIC PARALLEL SLATS MADE TO MEASURE Max. projection: 6037mm Max. width: 4500mm Total width unlimited in several modules - Extruded aluminum structure - Unlimited choice of universal RAL structure colors - Extrusion thickness: 2 to 3 mm (depending on profile) - 197x40 mm double-wall extruded aluminum slats with reinforced center divider - Slat rotation 0° to 115 - Load-bearing capacity 55kg/m² - i.e. 880kg/16m². - Blades + Structure with integrated seals - Feet 115 x 115 mm, height 2500 mm (can be cut to size) - Posts up to 3000 mm possible - Blade mounting by clipping system - Concealed double-cylinder motorization with multi-channel remote control - Floor mounting bracket - Installation between walls: between 2,3,4 walls and L-shaped terrace - Stainless steel screws - Wall-mounted box - Tilt angle: 0 - Water drainage through support beam - Approximate weight for a 4.5 x 6 m pergola +/- 630 kg - Made in France - 5-year warranty - Free delivery in mainland France
