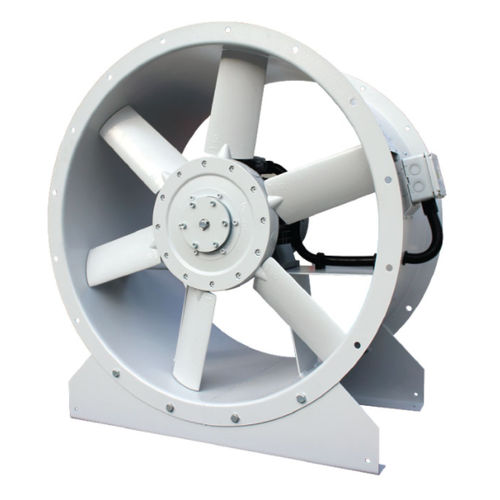

Extractor fan VAX
axialductcommercial

extractor fan
extractor fan
Add to favorites
Compare this product


Characteristics

Type
extractor, axial
Installation
duct
Sector
commercial, industrial
Material
aluminum, galvanized steel
Air flow

Max.: 190,000 m³/h (6,709,786.7 ft³/h)

Min.: 1,000 m³/h (35,314.7 ft³/h)

Description

VENCO Axial fans are used in car parks, subways, refrigeration and mining ventilation projects besides general ventilation applications. They are suitable for industrial and commercial applications. The best matching fan is supplied in the wide range by selecting several blade- hub combinations and adjustable blade angles. Features • Full size from Ø 315 mm to Ø 1.400 mm diameter • Hot dip galvanized sheet metal fan casing • Cast aluminum adjustable blade angle impellers • Aerodynamic profiled impellers allow high efficiency and low noise • Die cast aluminum alloy fan hubs • Optimum capacity obtained by different blade-hub combinations besides adjustable blade angels • IP 67 terminal box is placed out of the casing • Electrical motors with IP 55 and F class insulation • 230V, 1 phase, 50 Hz and 380V, 3 phase, 50 Hz • Operating temperature between -20°C and 60°C Accessories • SLE Silencer • EBS Standard Flexible Connection • NRDO Circular Back Draft Damper For Axial Fans • MFT Mounting Bracket • MFL Counter Flange • MPT Mounting Plate • MSC Wire Guard • ACD Inspection Hatch • XS Vibration Absorber Mountings • Frequency Inventers
