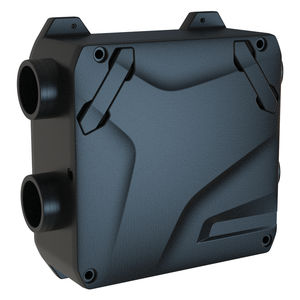

Home air handling unit VUTR VE EC

indoorfor ceiling

Air handling units in heat- and sound-insulated casing. Air flow up to 670 m³/h. Heat recovery efficiency up to 92 % The VUTR VE EC air handling units are the fully-featured ventilation units that ensure air filtration, fresh air supply and stale air extraction. Used in ventilation that require an economical solution and a controlled ventilation system. Made of polymer-coated steel, internally filled with a mineral wool heat- and sound-insulating layer. All units are equipped with a 5th spigot for connection of a kitchen hood (see the «Application options» section). The distinctive feature of the VUTR 200 VE2 EC unit is the ability to connect a KH-1 kitchen hood (available upon separate order) directly to the unit. The two integrated G4 and F7 filters ensure sufficient intake air purification. Extract air is cleaned by the integrated G4 filter. The units are equipped with high-efficient EC motors with an external rotor and a centrifugal impeller. These state-of-the-art motors offer the very best in energy efficiency today. Unit equipped with a rotary heat exchanger. As compared to plate heat exchangers, the rotary heat exchangers are distinguished with no condensate forming, ability to maintain comfortable air humidity and extremely low freezing danger. Units are equipped with an electric heater. The heaters are equipped with protecting devices to ensure safe and reliable operation of the unit. The unit is designed for wall or floor mounting. The access for unit and filter maintenance is available from the front panel. The service and the back panels can be rearranged allowing connection both on the right and on the left side.
