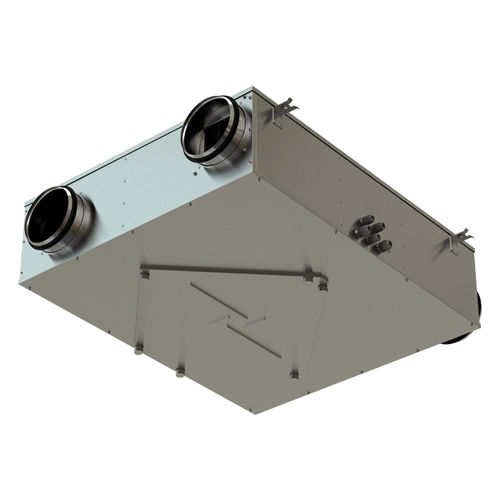

Home air handling unit VUE P3

indoorfor ceiling

Heat recovery air handling units in heat- and sound-insulated casing with max. air flow 400 m³/h and heat recovery efficiency 87 % The VUE P3 air-handling units are the fully featured ventilation units with heat recovery for air filtration, fresh air supply and stale air extract. Designed for application in various ventilation systems that require cost-saving and controllable ventilation. Single-phase external rotor motors with forward curved blades. The motors have overheating protection with automatic restart. The casing is made of polymer coated steel panels, internally lined with 5 or 10 mm heat- and sound-insulating layer of cellular polyurethane. Enthalpy cross-flow heat exchanger with recovery efficiency to 87 %. The enthalpy heat exchanger enables not only heat, but also humidity recovery. Efficient supply air filtration with two built-in G4 and F8 panel filters. Extract air filtration with a panel G4 filter. The VUE P3 A1 unit is equipped with the speed controller RS-1-400. The VUE P3 A12 unit has the speed controller with touch buttons and LED indication SRS-1. In case of freezing danger determined by the temperature sensor the supply fan is turned off to let extract air warm up the heat exchanger. Due to low height of the casing the unit offers the optimum solution for the suspended ceiling installation in limited installation space.
