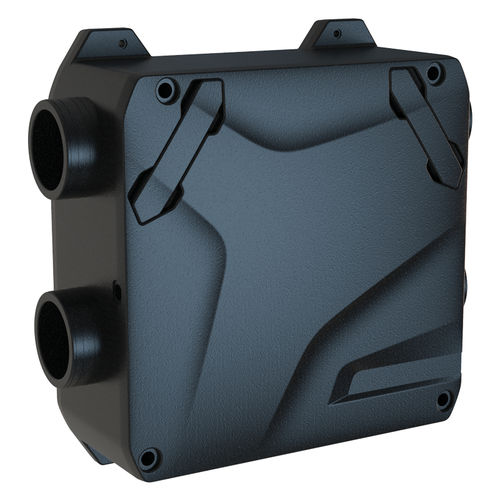

Commercial air handling unit ENAVE-C 100 P A14

industrialindoor

Heat recovery air handling units in sound- and heat-insulated casings. Air flow up to 136 m³/h. Heat recovery efficiency up to 94 %. The air handling units are the fully featured ventilation units with heat recovery for air filtration, fresh air supply and stale air extract. The units offer energy-efficient ventilation for small appartments. Enave-C 100 P A14 units are equipped with an integrated control system and an A14 wall-mounted control panel with LED indication. The casing is made of expanded polypropylene (EPP) possessing high heat- and sound-insulating properties. In the Enave-C 100 P A14 units freeze protection is provided by the shutdown of the supply fan. Two built-in G4 and F7 filters provide efficient air filtration. The unit is designed for suspended ceilling mounting. The mounting position of the unit must provide service access for maintenance and repair. Efficient electronically commutated motors with external rotor and impeller with forward curved blades.
