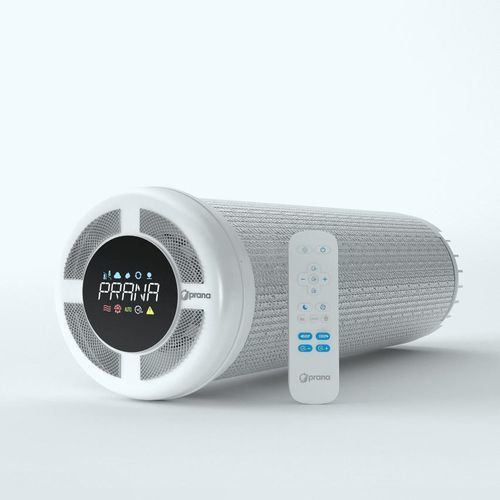

Dual-flow heat recovery unit PRANA 160

residentialcommercialhome

Overview
The PRANA 160 decentralized double-flow ventilation unit is designed for high heat recovery and easy installation without major renovation. Available in multiple versions (Standard, ERP, ERP PRO) and compatible with a range of accessories (filters, backdraft damper, windproof cover, decorative facade rings).

Versions

• Standard: base version providing the essential functions of the PRANA range with a copper heat exchanger and independent inlet/outlet flow control.
• ERP (recommended): adds connectivity (Wi‑Fi/Bluetooth) and a humidity sensor for automatic modes (AUTO / AUTO+).
• ERP PRO: top-end version equipped with additional sensors (inlet/outlet temperature sensors, CO2-equivalent sensor, TVOC air quality sensor) for advanced control and supervision.

Key features

• Copper heat exchanger with high efficiency (up to 98.5%).
• Independent control of supply and extract airflows.
• Operating modes: Manual, AUTO, AUTO+ (automatic optimization based on sensors), Sleep timer, "Winter" mode, Mini-heating.
• Control and connectivity: remote control, mobile app, Bluetooth and Wi‑Fi (depending on version).
• Filter management with filter status alert (local display or via app depending on version).

Available accessories

• G4+CARBON filter (single or pack of 3)
• Backdraft damper (option)
• Windproof cover (stainless steel; +2 cm / +5 cm options available)
• Decorative facade ring (PVC or stainless steel)

Versions comparison (included functions)
Functions | STANDARD | ERP | ERP PRO
Independent control of supply and extract airflow | Yes | Yes | Yes
Date and time display | Yes | Yes | Yes
Sleep timer | Yes | Yes | Yes
Connection via Bluetooth, Wi‑Fi | Yes | Yes | Yes
"Mini-heating" mode | Yes | Yes | Yes
"Winter" mode | Yes | Yes | Yes
Auto-diagnostic / filter status | No | Yes | Yes
Humidity sensor | No | Yes | Yes
Barometric pressure sensor | No | Yes | Yes
"Auto" and "Auto+" modes | No | Yes | Yes
Outlet air temperature sensor before recovery | No | Yes | Yes
Inlet air temperature sensor after recovery | No | No | Yes
Inlet air temperature sensor before recovery | Yes | No | Yes
CO2-equivalent sensor | No | No | Yes
TVOC air quality sensor | No | No | Yes
Thermal efficiency display | No | No | Yes

Additional information
Weight: 4 kg
Dimensions: 67 × 20 × 20 cm

Installation and uses
Decentralized unit suitable for apartments, houses, offices, educational facilities, beauty salons and commercial spaces. Quick installation (approximately 1 to 2 hours) without major works. Designed to prevent mixing of extract and supply air and to limit frost risk at low temperatures.

Certifications & compliance
Compliant with applicable European directives and standards (EMC, LVD, RED, RoHS, machinery safety, ERP ecodesign).

Specifications / technical data

• Air exchange flow: 5 – 52 m3/h
• Electrical consumption: 3.2 – 16.4 W
• Thermal efficiency: up to 98.5%
• Energy efficiency class: B
• Heat exchanger material: copper
• Mounting hole diameter: 162 mm
• Module length: 450 mm (standard length)
• Acoustic comfort at 3 m: 8 – 44 dBA
• Weight: 4 kg
• Dimensions: 67 × 20 × 20 cm
