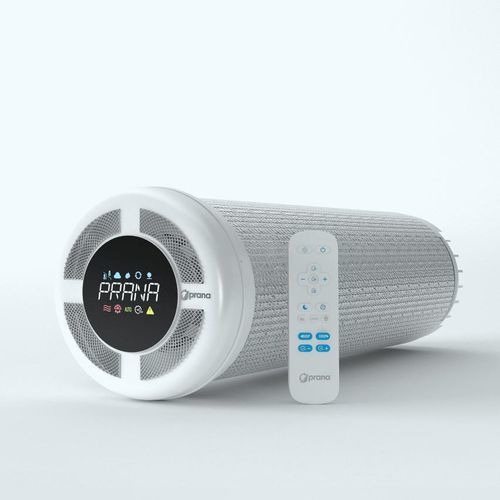

Dual-flow ventilation unit PRANA 210C

residentialfor homeclass A

Overview
Discover the PRANA 210C decentralized double-flow ventilation unit, available in Standard, ERP and ERP PRO versions. The unit performs balanced air exchange with heat recovery via a copper heat exchanger and offers multiple options and accessories to adapt installation (filters, backflow damper, decorative rings, windbreak cover, color and length customization).

Available versions

• Standard — base solution providing simultaneous supply and extract ventilation with a high-performance copper heat exchanger.
• ERP (recommended) — adds connectivity (Wi‑Fi/Bluetooth) and a humidity sensor for AUTO / AUTO+ modes and automatic adjustments based on conditions.
• ERP PRO — premium version including additional sensors (temperature before/after recovery, extra sensors, CO2‑equivalent sensor, TVOC air quality sensor) for advanced control and air quality statistics.

Options and accessories (examples and prices shown on the page)

• ERP version: +€91.20
• ERP PRO version: +€175.68
• Default module length: 490 mm (CUSTOMIZE option available)
• Front panel color (default White) — CUSTOMIZE option: +€342.90
• External decorative ring PVC (included by default) or Stainless Steel: +€52.20
• Filter(s): 1 G4+CARBON filter (included), 3 G4+CARBON filters: +€64.80
• Backflow damper (optional): Standard +€25.20
• Windbreak cover (optional): Standard +€52.20, +2 cm: +€61.20, +5 cm: +€82.80

Main functions and modes

• Independent control of incoming and outgoing airflows.
• Date/time display and sleep timer.
• Bluetooth and Wi‑Fi connectivity for remote control and mobile app.
• Operating modes: Mini‑heat, Winter, AUTO and AUTO+ (AUTO+ limits speed to reduce noise).
• Self-diagnosis and filter status indicator (display on screen / app depending on version).
• Monitoring and automatic adjustment based on sensors (humidity, temperature, CO2‑equivalent, TVOC depending on ERP/ERP PRO version).

Version comparison (summary)

• STANDARD: basic functions (high-efficiency copper heat exchanger, double-flow ventilation, standard modes).
• ERP: adds humidity sensor, connectivity (Wi‑Fi/Bluetooth), AUTO / AUTO+ modes and app control.
• ERP PRO: adds additional sensors (temperatures before/after recovery, CO2‑equivalent sensor, TVOC sensor), thermal performance display and detailed air quality tracking.

Pricing information shown

• Price displayed on the page (example configuration with selected options): total order shown €1428.48 incl. VAT.
• Commercial note: "From €1114.40 excl. VAT depending on version" (base price excl. VAT depending on version).

Technical specifications

• Airflow exchanged: 6–90 m³/h
• Electrical consumption: 3.2–19.5 W
• Efficiency up to: 92%
• Energy efficiency rating: B (Standard) or A (ERP and ERP PRO)
• Quality certificate: European CE quality certificate
• Heat exchanger material: Copper
• Mounting hole diameter: 220 mm
• Module length: 490 mm (default value)
• Acoustic comfort at 3 m: 8–48 dBA
• Weight: 5.8 kg
• Dimensions: 67 × 25 × 25 cm
