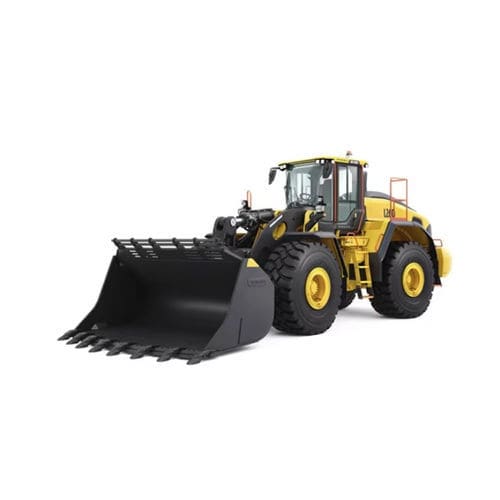

Wheeled loader L260

Tier 4 - intermediatedieselfor construction

Overview
The Volvo L260 wheel loader is engineered for large-scale rehandling, quarrying and mining operations. It combines high-capacity buckets, proven Z-bar linkage and intelligent machine systems to deliver faster cycle times, maximum payload and reliable serviceability in demanding environments.

Key capabilities

• Designed for large-scale rehandling, quarrying and mining
• Optimised for fast cycle times, maximum payload and operator comfort
• Range of Volvo smart solutions: Load Assist, On‑Board Weighing and Load Ticket

Main technical data (high level)
Emission standards: Stage V / Tier 4f
Bucket capacity (metric): 5.3 - 10.2 m³
Operating weight: 34,000 - 39,000 kg
Static tipping load at full turn: 23,800 kg

Features & benefits

• Loads of productivity — Second generation load sensing hydraulics enhance attachment responsiveness and boom speed; bucket leveling automatically returns bucket to level for improved operator performance.
• Automatic Traction Control (ATC) — Intelligent clutch engagement (standard on front axle, optional rear) reduces wheel spin, optimises traction and minimises tyre wear; manual control up to 25 km/h; auto engagement up to 12 km/h.
• OptiShift — Lock‑up engagement integrated with Reverse By Braking and torque converter with lock‑up for improved cycle times and reduced fuel consumption.
• Reverse By Braking (RBB) — Patented braking function that reduces engine rpm and applies service brakes when changing direction, lowering drivetrain stress and improving operator comfort.
• Smart Control & Auto-bucket fill — Default, fuel-efficient engine mode with operator-overridable settings; auto-bucket fill achieves consistent filling at the push of a button to reduce fatigue and increase productivity.
• Proven Z-bar linkage — High breakout force and robust lifting arm for heavy-duty applications; double sealing on pins for long life.
• Intuitive operator interface — Integrated Volvo Co‑Pilot 12.8" display plus dynamic instrument cluster provide easy control of media, cameras, climate, machine status and up to four widgets simultaneously.
• Comfort and cab ergonomics — Quiet, comfortable cab with improved storage, armrest, cupholder, Bluetooth, media player, USB charging and premium seating options (including heated/cooled seat variants).
• Volvo quality & serviceability — Durable frame, robust axles, hydraulically driven reversible cooling fan, outboard-mounted brakes, oil-cooled axles and easy-access service points; optional cab tilt and service platform for safe maintenance access.
• Connected solutions — CareTrack telematics for 24/7 monitoring and ActiveCare options; My Equipment app connectivity; Load Assist suite (On‑Board Weighing, Load Ticket, Operator Coaching, Tire Pressure Monitoring, Connected Map and Performance Indicator).
• Attachments — Wide portfolio of purpose-built Volvo buckets and attachments (rehandling buckets, general purpose, rock buckets, side-dump/side-tip, slag buckets, light material buckets, wear parts) matched to machine geometry and performance.

Applications

• Large-scale rehandling
• Quarrying and aggregates
• Mining
• Tunnelling and heavy-duty loading
• Slag handling and recycling (with dedicated machine/attachment options)

Notes
Image illustration only. Production machines may differ in appearance and feature availability between markets and models.

Technical specifications

• Model: L260
• Engine: Volvo D13J
• Emission standard: Stage V / Tier 4f
• Bucket capacity: 5.3 - 10.2 m³
• Operating weight: 34,000 - 39,000 kg
• Static tipping load at full turn: 23,800 kg
• Breakout force: 284 kN
• Max power (ECE R120 net): 310 kW
• Max power (ISO 9249 / SAE J1349 net): 309 kW
• Max power at: 1,400 - 1,900 rpm
• Max torque (ECE R120 net): 2,343 Nm at 1,100 - 1,150 rpm
• Max torque (ISO 9249 / SAE J1349 net): 2,328 Nm at 1,100 - 1,150 rpm
• Tire options: 29.5 R25, 875/65 R29
• Key Volvo systems: Load sensing hydraulics (2nd gen), OptiShift, Reverse By Braking, Automatic Traction Control, Auto-bucket fill, Volvo Co‑Pilot (12.8"), CareTrack telematics, Load Assist suite
