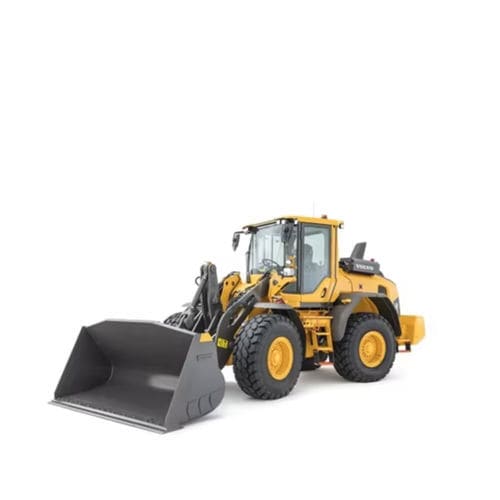

Rubber-tired loader L70H

dieselfor construction

Overview
H‑Series wheel loaders combine a strong frame and a matched genuine Volvo drivetrain to deliver long‑lasting performance and high uptime. A suite of smart apps and the Volvo Co‑Pilot 12" monitor support operator efficiency and jobsite productivity from the cab.

Key features

• Torque Parallel (TP) linkage for high breakout, tilt‑in and lifting forces while keeping attachments parallel for excellent load stability and easy bucket filling.
• Volvo attachment bracket for fast tool changes and wide attachment compatibility (buckets, forks, grapples, sweepers, material handling arms, snow ploughs).
• Up to 20% improved fuel efficiency with features such as Eco pedal and optional lock‑up to reduce torque converter losses and enable direct drive.
• Selectable rimpull control to optimise traction, reduce tyre wear and prevent wheel spin according to application and ground conditions.
• Volvo Co‑Pilot and Load Assist: 12" monitor with apps (Operator Coaching, Load Assist, Map, On‑board Weighing, Toolbox) to improve productivity, accuracy and operator performance.
• Electro‑servo controls as standard: automatic bucket levelling, return‑to‑dig, end‑stroke dampening, detent functions and adjustable lever sensitivity (Active, Normal, Soft).
• Comfortable ergonomic cab with multiple seat options, Contronic display, large glazed areas and optional cameras for improved visibility.
• Safety‑focused design: anti‑slip steps, strategically placed handrails, visual attachment locking indicator and several seatbelt options.
• Durable design and uptime features: strong frame, matched drivetrain, enhanced cooling (optional external axle cooling), extended axle oil intervals, ground‑level service access and slide‑out cooler for easy cleaning.

Applications

• General loading and material handling
• Quarries and aggregates
• Construction and site management
• Recycling and waste handling
• Snow clearing and municipal tasks (with suitable attachments)

Technical specifications

• Model: L70H
• Emission standards: Stage V / Tier 4f
• Bucket capacity: 1.8 - 6.4 m³
• Log grapples (area): 0.9 - 1.5 m²
• Operating weight: 12,700 - 15,500 kg
• Static tipping load at full turn: 8,700 kg
• Breakout force: 100 kN
• Engine: Volvo D6J
• Max power (engine speed): 1,500 - 1,800 rpm
• Power (ISO 9249, SAE J1349, net): 127 kW (170 hp)
• Max torque (ISO 9249, SAE J1349, net): 850 Nm at 1,400 rpm
• Tires: 20.5 R25, 600/65 R25
• Based on machine configuration example: 2.3 m³ (3.0 yd³) STE P BOE bucket
• Note: Image illustration only. Production machines may differ in appearance and features vary between markets and models.
