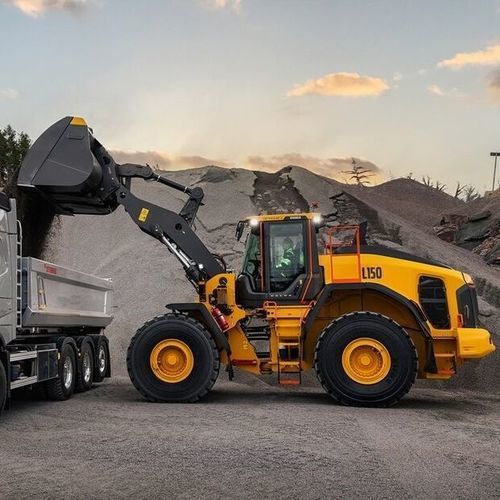

Rubber-tired loader L150

Tier 4 - intermediatedieselfor construction

Overview
The L150 wheel loader from Volvo Construction Equipment combines proven Volvo powertrain components, advanced hydraulics and operator assistance systems to increase productivity across rehandling, material handling and earthmoving applications. It is engineered for high cycle times, stable loading and versatile attachment use.

Features & Benefits

• Fast cycle times with second-generation load-sensing hydraulics, increased hydraulic pump flow and class‑leading hinge pin height for improved dump clearance; automatic bucket leveling from dump and curl positions.
• Torque Parallel (TP) linkage delivering high breakout torque and parallel movement for stable, efficient filling and durable performance with double-sealed lift-arm pins.
• Load Assist within Volvo Co‑Pilot: On-Board Weighing, Operator Coaching, Tire Pressure Monitoring and Connected Map for real-time load insight and improved accuracy.
• Fuel efficiency and lower emissions via Volvo powertrain, OptiShift and attachment optimisation; approved for HVO renewable diesel.
• OptiShift and Reverse By Braking (RBB) with lock-up torque converter to reduce cycle times, drivetrain stress and fuel use; improved lock-up-to-lock-up gear changes.
• Auto-bucket fill and Smart Control for consistent filling and fuel-efficient engine modes to reduce operator fatigue and extend tyre life.
• Operator ergonomics and control: 12.8-inch Volvo Co‑Pilot integrated display, dynamic instrument cluster, customizable settings, Comfort Drive Control (optional) and a range of seat options including heated/cooled variants.
• Durable design and serviceability: reinforced frame and axles, reversible cooling fan, outboard-mounted brakes, cooled axles, captive filters and accessible maintenance points to maximise uptime.
• Safety: excellent in-cab visibility, optional rear-view and 360° camera systems (Volvo Smart View), Collision Mitigation System for reversing protection, enhanced lighting and improved access/handrails.
• Connectivity and uptime services: CareTrack telematics, My Equipment app, ActiveCare and Volvo Uptime Center for monitoring and proactive maintenance.
• Wide attachment range: purpose-built Volvo buckets, forks, grapples and material-handling attachments matched and tested for specific applications.

Key specifications

• Static tipping load at full turn: 16,000 kg
• Bucket capacity: 3.4 - 14 m³
• Operating weight: 24,100 - 25,600 kg
• Breakout force: 201 kN
• Engine: Volvo D13J
• Max power (ECE R120 net): 224 kW at 1,300 rpm
• Max power (ISO 9249, SAE J1349 net): 223 kW
• Max torque (ECE R120 net): 1,999 Nm at 1,000 rpm
• Tire options: 26.5 R25, 775/65 R29

Attachments
Volvo offers a comprehensive range of matched attachments — rehandling buckets, general purpose and rock buckets, slag buckets, forks, grapples, material handling arms and sweepers — designed and tested to work optimally with the L150.

Technical specifications

• Model name: L150
• Manufacturer / brand: Volvo Construction Equipment
• Emission standard: Stage V / Tier 4f
• Engine model: Volvo D13J
• Max power (ECE R120 net): 224 kW at 1,300 rpm
• Max power (ISO 9249, SAE J1349 net): 223 kW
• Max torque (ECE R120 net): 1,999 Nm at 1,000 rpm
• Operating weight: 24,100 - 25,600 kg (depending on configuration)
• Static tipping load at full turn: 16,000 kg
• Bucket capacity range: 3.4 - 14 m³
• Breakout force: 201 kN
• Log grapple area: 1.6 - 3.5 m²
• Tire options: 26.5 R25, 775/65 R29
• Onboard systems: Volvo Co‑Pilot (Load Assist apps including On‑Board Weighing, Operator Coaching, Tire Pressure Monitoring, Connected Map), OptiShift, Reverse By Braking (RBB), Smart Control, Auto-bucket fill, Comfort Drive Control (optional)
• Service & connectivity: CareTrack, ActiveCare / Volvo Uptime Center, My Equipment
• Design notes: Torque Parallel linkage, reinforced lift arms with double pin sealing, reversible cooling fan, improved service platform
