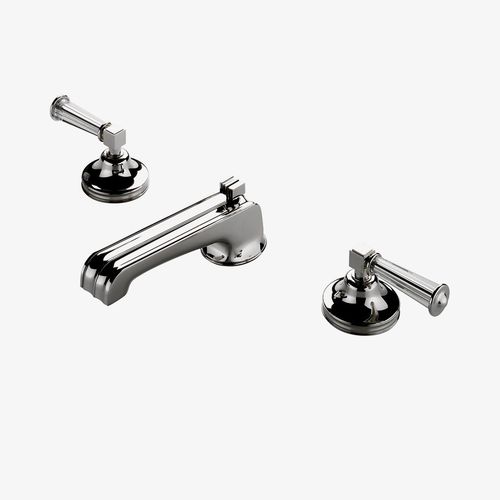

Boulevard Low Profile Three Hole Deck Mounted Lavatory Faucet with Crystal Lever
Inspiration from 1930s objects evokes extravagance: a strong silhouette, lavish scale and elegant decoration. Machine and artisan hands yield crisp details and curves.
FEATURES
Crystal lever handles
Includes European size pop up drain
Solidly sized and generous in scale, decorative elements convey a sense of substance
Stocked in Nickel and Unlacquered Brass
Available in 1.2gpm (4.5L/min) flow rate
TECHNICAL DETAILS
ADA Compliance: Yes
Deck Thickness Maximum: 1 1/2"
Deck Thickness Minimum: 0"
Drain Assembly Materials: Brass
Drain Depth Maximum: 1 3/4"
Drain Hole Diameter: 1 3/4"
Fittings Hole Diameter: 1 1/4"
Handle Spread Maximum: 12"
Handle Spread Minimum: 8"
Handle Turn Angle: Quarter Turn
Depth / Width: 7 1/2"
Drain Depth Minimum: 1 3/8"
Height: 2 1/2"
Inlet Connection Size: 1/2"
Inlet Connection Type: Male with Supply Nut
Length: 14 1/4"
Primary Material: Brass
Restricted Maximum Flow Rate: 1.2 gpm
Spout Swivel: N
Suggested Application: Bath
Valve Material: Ceramic
Water Pressure Maximum: 85.0 psi
Water Pressure Minimum: 20.0 psi
Water Pressure Recommended: 45.0 psi
