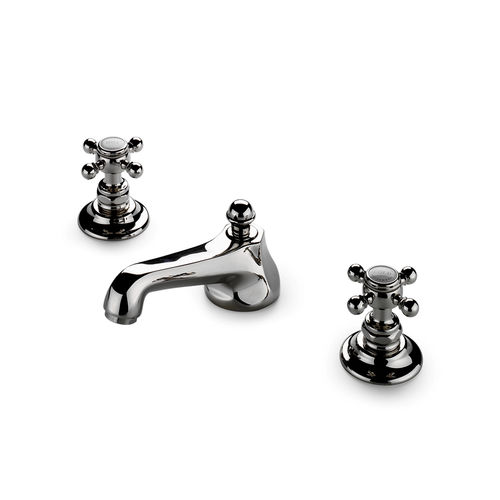

Astoria Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Cross Handles
Astoria is dignified tradition. Firmly grounded in the 1930's, the design is an eclectic mix of distinctive geometric profiles, generous scale, and elegant design.
FEATURES
Brass material is used for all trim and valve component parts.
The manufacturing process encompasses casting, turning, hand-fitting and hand polishing.
A comprehensive product line of fittings options for the lavatory, shower, and bathtub.
Available in 1.2gpm (4.5L/min) flow rate
TECHNICAL DETAILS
ADA Compliance: Yes
Adjustable versus Fixed Spray: Fixed Spray
Deck Thickness Maximum: 1 5/8"
Deck Thickness Minimum: 0"
Drain Assembly Materials: Brass
Drain Depth Maximum: 1 3/4"
Drain Hole Diameter: 1 3/4"
Drain Style: Pop-up
Escutcheon Primary Material: Brass
Fittings Hole Diameter: 1 1/4"
Handle Spread Maximum: 12"
Handle Spread Minimum: 8"
Handle Turn Angle: Quarter Turn
Depth / Width: 7"
Drain Depth Minimum: 1 3/8"
Height: 3"
Inlet Connection Size: 1/2"
Inlet Connection Type: Male with Supply Nut
Inlet Supply Spread Maximum: 12"
Inlet Supply Spread Minimum: 8"
Length: 11"
Number of Holes: Three Hole
Primary Material: Brass
Restricted Maximum Flow Rate: 1.2 gpm
Spout Swivel: N
Suggested Application: Bath
Valve Material: Ceramic
Water Pressure Maximum: 85.0 psi
Water Pressure Minimum: 20.0 psi
Water Pressure Recommended: 45.0 psi
