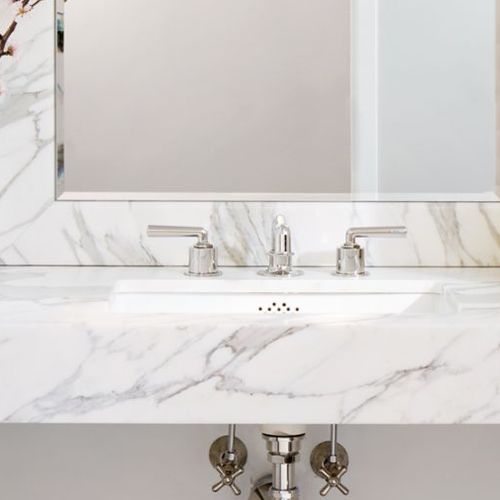

Henry Low Profile Three Hole Deck Mounted Lavatory Faucet with Metal Lever Handles
Influenced by the connection of industry and art Henry easily transitions between modern, traditional, utilitarian and classic settings.
Metal lever handles
Includes European size push touch drain
The manufacturing process encompasses casting, turning, forging, hand-fitting and hand polishing.
Stocked in Chrome, Nickel, Matte Nickel, and Unlacquered Brass
Available in 1.2gpm (4.5L/min) flow rate
ADA Compliance: Yes
Adjustable versus Fixed Spray: Fixed Spray
Deck Thickness Maximum: 1 5/8"
Deck Thickness Minimum: 3/16"
Drain Depth Maximum: 2 5/8"
Drain Hole Diameter: 1 3/4"
Escutcheon Primary Material: Brass
Fittings Hole Diameter: 1 1/4"
Handle Spread Maximum: 12"
Handle Spread Minimum: 8"
Handle Turn Angle: Quarter Turn
Depth / Width: 7 5/8"
Drain Depth Minimum: 3/8"
Height: 3 5/8"
Inlet Connection Size: 1/2"
Inlet Connection Type: Male with Supply Nut
Inlet Supply Spread Maximum: 12"
Inlet Supply Spread Minimum: 8"
Installation Type: Deck Mounted
Integrated Diverter: N
Integrated Spray: N
Number of Handles: Two
Number of Holes: Three Hole
Primary Material: Brass
Spout Swivel: N
Spray Included in Unit: N
Suggested Application: Bath
Valve Material: Ceramic
Water Pressure Maximum: 85.0 psi
Water Pressure Minimum: 20.0 psi
Water Pressure Recommended: 45.0 psi
