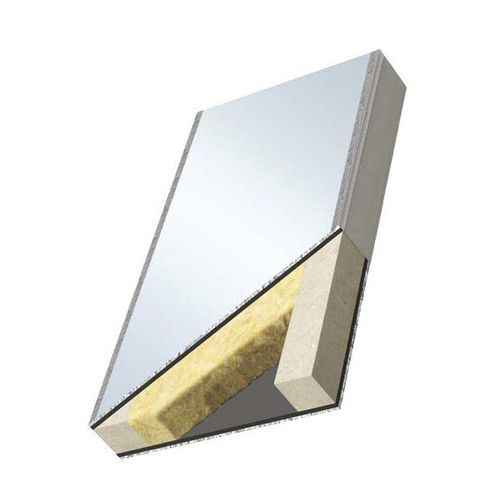

Facade acoustic sandwich panel COSMO SILENT (dB 46/50) - ALU

for doorsfor windowaluminum facing

ALU on both sides, core of mineral wool, heavy-film insert Composite panels with special sound insulation (dB46 - dB50), consisting of a pure aluminium cover sheet with a thickness of 1,5 - 2,0mm and a core of mineral fibre insulation (MIN). VERSIONS - ALU/dB46-MIN - ALU/dB50-MIN SPECIAL CHARACTERISTICS - powder-coated according to RAL - hydrophobic - thermal insulated and sound absorbing - permeable - special heavy film to improve sound insulation APPLICATION EXAMPLES - window fillings - door fillings - balustrade panels - façade panels Technical information Surface panels Pure aluminium Al MG 1 Core material Mineral fibre insulation (MIN) Thermal conductivity 035 ALU/dB46-MIN Sound insulation value (dB) 46 (ift 164 43338/13 R1) Thickness of surface panels (mm) 1,5 Panel thickness (mm)/ U-value* 31/1,30 Dimensions Fixed sizes ALU/dB50-MIN Sound insulation value (dB) 50 (ift 164 15262) Thickness of surface panels (mm) 2,0 Panel thickness (mm)/ U-value* 42/0,93 Dimensions Fixed sizes
