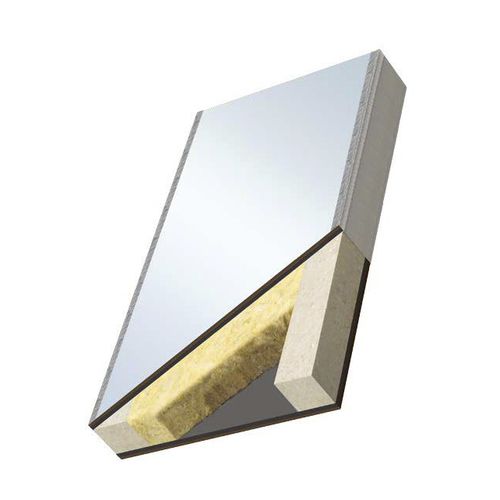

Facade acoustic sandwich panel COSMO SILENT (DB 45/47) - HPL

for doorsfor windowHPL facing

HPL on both sides, core of mineral wool Composite panels with special sound insulation (dB45, dB47), consisting of a high pressure laminate (HPL) with a thickness of 2,0mm and a core of mineral fibre insulation (MIN). VERSIONS HPL-MIN/dB45 ift 164 11442/1 HPL-MIN/dB47 ift 164 11442/2 SPECIAL CHARACTERISTICS - impact and shock resistant according to DIN EN 438/2 - UV- and weather resistant - mechanical stability, non-abrasive, impact and scratch resistant - chemical resistance against: organic solvents, weak acids and bases, benzine, oil, resistant against - bacteria and fungal infestation - hydrophobic - thermal insulated and sound absorbing - permeable - special heavy film to improve sound insulation - circumferential edge bend with vapour-tight foil as moisture barrier APPLICATION EXAMPLES - window fillings - door fillings - balustrade panels - façade panels Technical information Surface panels High-pressure laminated pannels (HPL) Core material Mineral fibre insulation (MIN) Thermal conductivity 035 Thickness of surface panels (mm) 2,0 HPL-MIN/dB45 Sound insulation value (dB) 45 (ift 164 43338 14 R1) Panel thickness (mm)/ U-value* 27/1,52 Dimensions Fixformate HPL-MIN/dB47 Sound insulation value (dB) 47 (ift 164 114422) Panel thickness (mm)/ U-value* 32/1,25 Dimensions Fixformate
