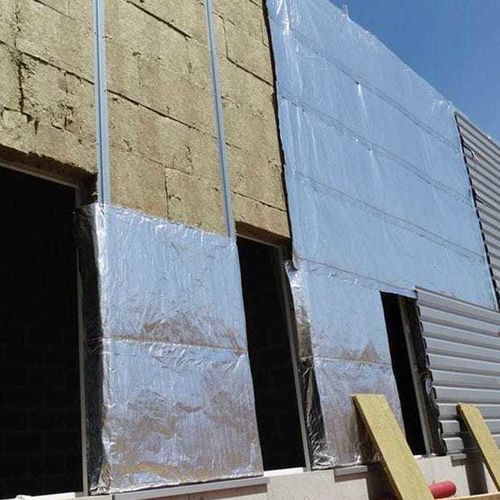

External thermal insulation waterproofing membrane FIREBREATHER ALU A2 W1

fire safetyfor facadefor roof

Non-combustible and reflective breather membrane. It is used for facades and roofs, new builds and refurbishments. Applications: - Roofs or facades - High rise buildings - Open claddings - Timber frame constructions - Public buildings - Off-site constructions Benefits: - Non-combustible (A2-s1,d0 according to EN 13501-1) - Highly breathable - Summer comfort - Strong mechanical resistance - Easy to cut - Long lifetime Technical datas: - Water penetration: W1 - Reaction to fire: A2-s1, d0 - Water vapour permeance (Sd Value): 0.08 m - Resistance to vapour penetration: 0.44 MN.s/g - Water vapour diffusion coefficient (μ): 235 - Air tightness: 0.093 m³/(hxm²x50 Pa) - UV resistance (without cladding): 9 months - UV resistance* (50% and 50 mm joints): Permanent (5 000 hours tested) - Temperature range: -36°C to 90°C - Material: Micro-perforated aluminum foil, Functional film, Glass fibre fabric, Integrated adhesive tape - Thickness: 0.43 mm - Mass per unit area: 430 g/m² - Width: 1.20 m - Length: 35 m / 50 m - Total m²: 42 m² / 60 m² - Usable m²: 38.5 m² / 55 m² - Weight: 19 kg / 26 kg - Packaging: 24 rolls/pallet (1008 m² / 1 440 m²) * For any other project conditions, contact our technical department. Certifications: - Teen-years guarantee - Patented mineral technology - CE A2 firebreather w1 - CE mark A2 firebreather w1 Characteristics / Technical specifications: - Non-combustible and reflective breather membrane for facades and roofs - Suitable for new builds and refurbishments - Classified A2-s1,d0 (EN 13501-1) - Highly breathable, strong mechanical resistance - Micro-perforated aluminum foil, functional film, glass fibre fabric, integrated adhesive tape - Thickness: 0.43 mm - Mass per unit area: 430 g/m² - Width: 1.20 m - Length: 35 m / 50 m - Usable area: 38.5 m² / 55 m² - Weight: 19 kg / 26 kg - Packaging: 24 rolls/pallet
