Fire-retardant protective layer INTECH STRONG

vapor-permeableUV-resistantEN 13501-1

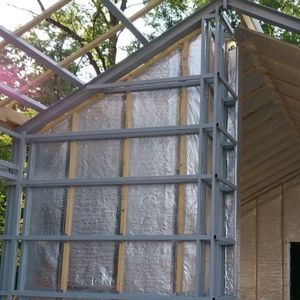

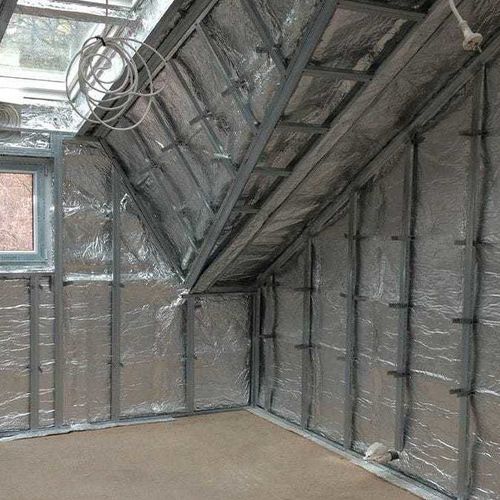

Non-combustible and high-density reinforced air & vapour control layer. It is used for internal and facades (depending on climate), in new builds and refurbishments. Applications: - Internal thermal refurbishment - Timber frame constructions - Public buildings - Off-site constructions - Metal frame constructions Benefits: - Non-combustible (A2-s1,d0 according to EN 13501) - Very high reflectivity (97%) - High insulating performance (λ = 0.028W/m.K) - Strong mechanical resistance Technical datas: - Reaction to fire: A2-s1,d0 - Thermal resistance with 2 air gaps: 1.55 m².K/W - Thermal conductivity (ʎ): 0.028 W/mK - Water vapour permeance (Sd Value): > 4 000 m - Resistance to vapour penetration: > 20 000 MN.s/g - Water vapour diffusion coefficient (μ): 666 666 - Air tightness: 0 m³/(hxm²x50 Pa) - UV resistance (without cladding): 9 months - UV resistance* (50% and 50 mm joints): Permanent (5 000 hours tested) - Temperature range: -36°C to 180°C - Material: Aluminum foils, Glass fibre fabric, E glass needle mat - Thickness: 6 mm - Mass per unit area: 850 g/m² - Width: 1 m - Length: 25 m - Total m²: 25 m² - Usable m²: 22.5 m² - Weight: 22 kg - Packaging: 12 rolls/pallet (300 m²) * For any other project conditions, contact our technical department. Certifications: - Certified A+ - Certified Excell green zone - Decennial guarantee Characteristics / Technical specifications: - Non-combustible (A2-s1,d0 according to EN 13501) - Very high reflectivity (97%) - High insulating performance (λ = 0.028W/m.K) - Strong mechanical resistance - Thermal resistance with 2 air gaps: 1.55 m².K/W - Thermal conductivity (ʎ): 0.028 W/mK - Water vapour permeance (Sd Value): > 4 000 m - Resistance to vapour penetration: > 20 000 MN.s/g - Water vapour diffusion coefficient (μ): 666 666 - Air tightness: 0 m³/(hxm²x50 Pa) - UV resistance (without cladding): 9 months - UV resistance* (50% and 50 mm joints): Permanent (5 000 hours tested) - Temperature range: -36°C to 180°C - Material: Aluminum foils, Glass fibre fabric, E glass needle mat - Thickness: 6 mm - Mass per unit area: 850 g/m² - Width: 1 m - Length: 25 m - Total m²: 25 m² - Usable m²: 22.5 m² - Weight: 22 kg - Packaging: 12 rolls/pallet (300 m²)
