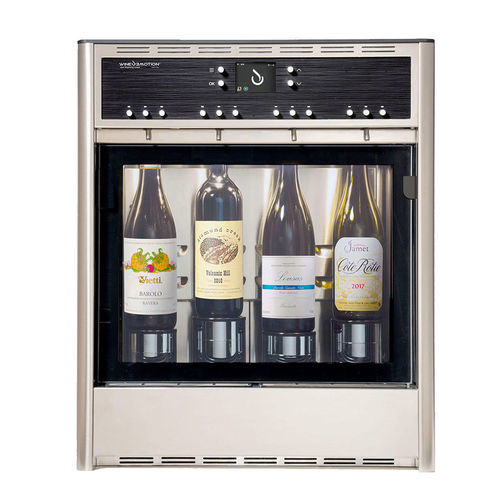

Countertop wine-by-the-glass dispenser QUATTRO EASY

built-incommercialfor gourmet restaurants

Overview
Wineemotion’s goal has always been to find the best solution to preserve and pour wine without altering the taste. The latest version of the Wine Tap improves preservation and dispenser reliability with a motorized pump that cleans residues from the nozzle.

Main Features

• New Wine Tap Technology. Motorized pump that cleans residues from the nozzle to improve wine preservation and dispenser reliability.
• Gas Spring Pistons. "Push-push" technology allows lowering the pistons with one push and pushing again to engage the bottle for easy operation.
• Easy Interface. Simplified, intuitive interface with clear commands and main information at a glance.
• Innovative cooling system. Silent, reliable and powerful cooling to keep wines at the right temperature.
• Front air intakes. Frontal airflow design allows the dispenser to be fully encased without leaving space on top or back.

Features (details)

• SERVICE TEMPERATURES: Temperatures can be set from 6°C to 22°C.
• POURS: Up to three pour volumes through high quality mechanical buttons.
• BOTTLES LIFTING SYSTEM: Lifting system with gas spring pistons.
• COOLING SYSTEM: Modern no-frost, noiseless professional cooling system.
• GAS: Uses Nitrogen or food grade Argon (cylinder or generator not included).
• CUSTOMIZATIONS: Machine color can be customized; front panel can be silkscreened.
• LOCKING SYSTEM: Electronic door lock and PIN lock for buttons.
• ANTI CONDENSATION GLASS: Glass doors treated with a special coating that prevents condensation.

Dimensions and Weight
Width: 528mm | 20 13/16″
Height: 632mm | 24 7/8″
Depth: 398mm | 15 11/16″
Weight: 42kg | 92.5lbs

Use & Preservation
Designed to preserve, refrigerate and serve wines directly from the bottle to the glass. Introduction of inert gases (Nitrogen or Argon) prevents oxidation and preserves taste and aromas for about four weeks, allowing each glass to be served in ideal conditions.

Characteristics / Technical specifications

• Model: QUATTRO EASY
• Service temperature range: 6°C – 22°C
• Pouring options: up to 3 preset pour volumes (mechanical buttons)
• Bottle handling: gas spring pistons with push-push engagement
• Cooling: professional no-frost noiseless system
• Airflow: frontal air intakes (allows full encasement)
• Gas compatibility: Nitrogen or food grade Argon (supply not included)
• Locking: electronic door lock; PIN lock for buttons
• Glass treatment: anti-condensation coating
• Customizations: machine color and silkscreenable front panel
• Dimensions (W×H×D): 528mm × 632mm × 398mm
• Weight: 42 kg
• Additional: motorized self-cleaning pump on the Wine Tap nozzle
