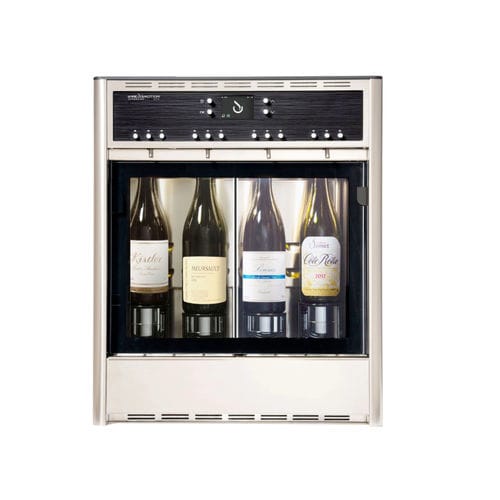

Undercounter wine-by-the-glass dispenser 2+2 EASY

built-infor collectorscommercial

Product Overview
Wineemotion Four Bottles Back Bar Wine Dispenser 2+2 EASY is a dual-temperature back-bar/under-counter unit engineered to preserve, chill and serve bottled wines by the glass while maintaining organoleptic properties.

Main Innovations

• New Wine Tap Technology. Motorized pump self-cleans the nozzle to reduce residue, improving wine preservation and dispenser reliability.
• Gas Spring Pistons. Push‑push pistons allow lowering and engaging bottles with two simple presses for safe, repeatable operation.
• Easy Interface. Intuitive control panel shows key information at a glance for fast operation in a busy service environment.
• Dual zone. Two separate compartments with thermal divider delivering approximately an 8 °C difference between the cooled left side and the right side for reds.
• Innovative cooling system. Silent, professional no‑frost refrigeration designed for stable temperature control.
• Front air intakes. Frontal ventilation allows full encasement under counters or behind bars without top/back clearance.

Features

• Service Temperatures: Dual zone 6°C–22°C; without divider 15°C–22°C.
• Pours: Up to three selectable pour volumes via high-quality mechanical buttons.
• Bottles Lifting System: Gas spring pistons with push‑push action for easy bottle engagement.
• Cooling System: Modern no‑frost, low-noise professional refrigeration.
• Gas: Uses Nitrogen or food-grade Argon (cylinder or generator not included) to protect wine from oxidation.
• Customizations: Machine color customizable; front panel available for silkscreen printing.
• Locking System: Electronic door lock and PIN protection for controls.
• Anti-Condensation Glass: Doors treated with coating to prevent condensation.

Dimensions and Weight
Width: 528 mm | 20 13/16″
Height: 632 mm | 24 7/8″
Depth: 398 mm | 15 11/16″
Weight: 42 kg | 92.5 lbs

Ideal Use
Designed for dispensing wine by the glass in bars, wine bars and commercial counters; suitable for professional venues and private collectors requiring controlled service temperatures.

Preservation
Inert gas (Nitrogen or food-grade Argon) is introduced into the bottle to prevent oxidation; taste and aromas can be preserved for about four weeks while serving each glass under optimal conditions.

Technical specifications

• Model line: 2+2 EASY (four-bottle, dual-temperature)
• Service temperature (dual zone): 6°C – 22°C
• Service temperature (no divider): 15°C – 22°C
• Pours: up to 3 selectable pour volumes via mechanical buttons
• Bottle lifting: gas spring pistons with push-push action
• Cooling: modern no‑frost, low-noise professional system
• Thermal divider: approx. 8 °C difference between compartments
• Gas protection: Nitrogen or food-grade Argon (cylinder/generator not included)
• Front air intake design for full encasement
• Customizations: machine color and silkscreenable front panel
• Locking: electronic door lock and PIN protection for controls
• Glass: anti-condensation coating
• New Wine Tap: motorized pump for nozzle cleaning to improve preservation and reliability
• Weight: 42 kg
• Dimensions (W×H×D): 528 × 632 × 398 mm
