Countertop wine-by-the-glass dispenser OTTO EASY

built-incommercialfor bar

Overview

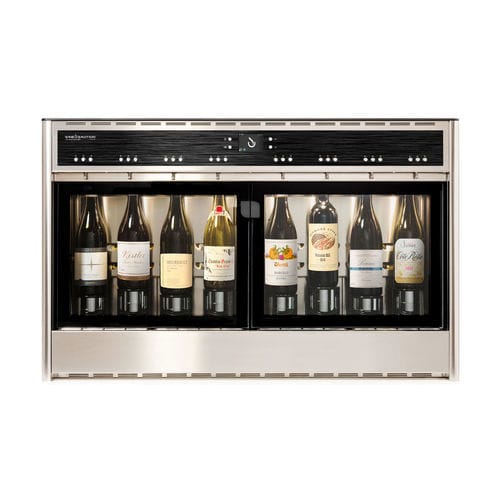

The OTTO EASY is an eight-bottle back-bar wine dispenser designed to preserve, refrigerate and serve wines directly from the bottle. It combines a compact, professional design with two independent cooling zones, programmable pour volumes and an intuitive user interface. Preservation is achieved using inert gases (Nitrogen or food-grade Argon) to protect wine from oxidation and extend aroma stability.

Key features

• New wine tap technology: Motorized pump clears nozzle residues to improve preservation and dispenser reliability.
• Gas spring pistons: Push-push system allows easy lowering and engagement of bottles for fast operation.
• Easy interface: Simplified controls with key information visible at a glance.
• Two independent cooling zones: Separate compressors and cooling circuits let you set different temperatures per zone.
• Front air intakes: Frontal airflow design enables full encasement without ventilation space at top or rear.

Service temperatures
Temperature range adjustable from 6°C to 22°C.

Pours
Up to three selectable pour volumes via mechanical buttons; up to three programmable doses per tap.

Bottle lifting system
Gas spring pistons with push-push lowering and engaging mechanism.

Cooling system
No-frost, noiseless professional refrigeration system; silent, reliable and powerful.

Gas
Uses Nitrogen or food-grade Argon for preservation (cylinder or generator not included).

Customizations
Machine color can be customized; front panel available for silkscreening.

Locking system
Electronic door lock and PIN lock for controls.

Anti condensation glass
Glass doors treated with anti-condensation coating to prevent fogging.

Dimensions and weight
Width: 1010 mm | 39 3/4"
Height: 632 mm | 24 7/8"
Depth: 398 mm | 15 11/16"
Weight: 70 kg | 154 lbs

Use and preservation
Suitable for use on or behind the counter in commercial establishments and for private connoisseurs. Inert-gas preservation allows air to be displaced and slows oxidation so that taste and aromas remain stable for approximately four weeks.

Technical specifications

• Model: OTTO EASY (eight-bottle dispenser)
• Service temperature range: 6°C – 22°C
• Pours: up to 3 selectable volumes; up to 3 programmable doses per tap
• Cooling: two independent zones with separate compressors; no-frost, noiseless professional system
• Bottle handling: gas spring pistons with push-push lowering/engaging
• Preservation gas: Nitrogen or food-grade Argon (cylinder/generator not included)
• Front air intake design for full encasement
• Locking: electronic door lock and PIN lock for controls
• Anti-condensation treated glass doors
• Dimensions: Width 1010 mm; Height 632 mm; Depth 398 mm
• Weight: 70 kg
• Customizations: customizable machine color and silkscreenable front panel
