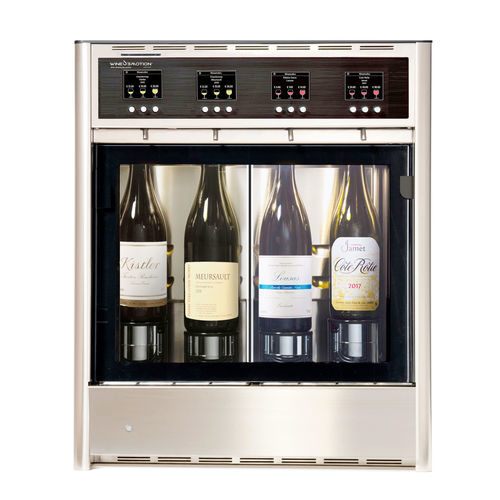

Countertop wine-by-the-glass dispenser DUE+2 SELF

built-infree-standingfor collectors

Overview
QUATTRO is the bottle wine dispenser designed for small businesses and wine tasting in the cellar. An elegant refrigerated display cabinet that combines careful design with advanced technology. It can pour four bottles in a controlled climate area. Maximum silence, great efficiency and compact dimensions make this dispenser ideal for serving wine by the glass, guaranteeing product quality and reducing waste.

Key Features

• Horizontal Card Reader: Series 4 dispensers feature a horizontal card reader for easier access; optional RFID card reading capability available.
• New Wine Tap Technology: Latest Wine Tap version with a motorized pump that cleans residues from the nozzle to improve wine preservation and dispenser reliability.
• Motion Sensor: Displays are activated by a motion sensor to prolong display life and save energy.
• TFT Color Display: All Series 4 self service dispensers feature TFT color displays to quickly distinguish white and red wines.
• Dual Zone: Two separate areas divided thermally, allowing about an 8 °C difference between the left side (refrigerated, for white wines) and the right side (for red wines); quiet, reliable and powerful cooling system maintains correct serving temperatures.
• Frontal Air Flow: New design allows the dispenser to be fully encased without leaving space on top or back, enabling more creative integration solutions.

Product Purpose and Preservation
Designed to preserve, refrigerate and serve wines directly from the bottle to the glass. Introduction of inert gases (Nitrogen or Argon) into the bottle prevents oxidation; taste and aromas remain stable for about four weeks, ensuring each glass is served in ideal condition.

Additional Functional Highlights

• Use and Activation System: Operates in behind-the-bar mode (no wine card) or self-service with wine card (chip or RFID) or barcode reader.
• Service Temperatures: Temperatures can be set from 6°C to 22°C.
• Pours: Up to three pour volumes selectable through high-quality mechanical buttons.
• Software Connection: Connection between modules and software via LAN cable and WI/FI* with TCP/IP protocol.
• Bottles Lifting System: Lifting with pneumatic pistons.
• Cooling System: Modern no-frost, noiseless professional cooling system.
• Wine Card: Chip or RFID cards supported.
• Gas: Use of Nitrogen or food grade Argon to protect wine from oxidation (cylinder or generator not included).
• Customizations: Machine color can be customized; front panel can be silkscreened.
• LED Illumination: Intelligent RGB LED system for multiple color combinations.
• Locking System: Automatic lock activated by Smart Card or RFID.
• Anti-condensation Glass: Glass doors treated with special coating to prevent condensation.

Dimensions and Weight
Width: 528mm | 20 13/16"
Height: 632mm | 24 7/8"
Depth: 398mm | 15 11/16"
Weight: 42kg | 92.5lbs

Temperature Combinations
Unit features dual-zone configuration enabling distinct temperature control for left and right compartments (approx. 8 °C difference between zones).

Technical specifications

• Model family: Series 4 self service dispensers.
• Use modes: Behind-the-bar or self-service with card/barcode.
• Card types: Chip or RFID compatible.
• Service temperature range: 6°C to 22°C.
• Pours: Up to three selectable pour volumes via mechanical buttons.
• Connectivity: LAN and WI/FI* (TCP/IP).
• Bottle lifting: Pneumatic piston system.
• Cooling: No-frost, noiseless professional cooling; frontal air flow design.
• Gas protection: Nitrogen or food grade Argon (cylinder/generator not included).
• Customizations: Machine color and front panel silkscreening available.
• LED: Intelligent RGB illumination system.
• Locking: Automatic lock activated by Smart Card or RFID.
• Anti-condensation: Treated glass doors to prevent condensation.
• Dimensions and weight:
  Width: 528mm | 20 13/16"
  Height: 632mm | 24 7/8"
  Depth: 398mm | 15 11/16"
  Weight: 42kg | 92.5lbs
