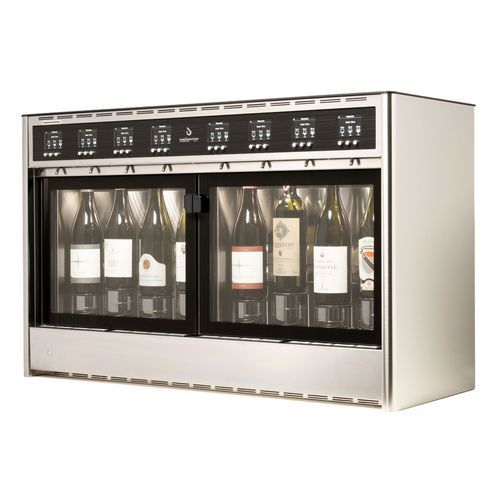

Built-in wine-by-the-glass dispenser OTTO SELF

for restaurantfor barcommercial

Overview
OTTO SELF is an 8-tap self-serve wine dispenser that preserves, chills and dispenses wines directly from the bottle to the glass. Part of the Series 4 range, it integrates features to improve wine preservation, dispensing accuracy and user interaction.

Key features

• Horizontal card reader for easy access; supports chip and RFID cards (barcode reader optional).
• New wine tap technology with motorized pump that cleans nozzle residues to improve preservation and dispenser reliability.
• Motion sensor activates displays only when users are nearby to save energy and extend display life.
• TFT color display on all Series 4 units to quickly distinguish white and red wines.
• Two independent cooling zones with separate compressors to manage different temperatures.
• Frontal airflow design allowing full encasement without ventilation clearance on top or rear.

Use and activation system
Operable in behind-the-bar mode (no wine card) or self-service mode using wine cards (chip or RFID) or barcode reader.

Service temperatures
Two fully independent zones with a range from 6°C to 22°C per zone.

Pours
Up to three selectable pour volumes via high-quality mechanical buttons.

Software connection
Module and software communication via wired LAN and optional Wi-Fi* using TCP/IP protocol; compatible with Wineidea management software.

Bottle lifting system
Pneumatic piston lifting system for secure bottle handling.

Cooling system
No‑frost, low-noise professional refrigeration with independent compressors for separated temperature control.

Wine card
Supports chip and RFID cards (barcode reader optional).

Gas
Uses Nitrogen or food-grade Argon to prevent oxidation (cylinder or generator not included).

Customizations
Machine color can be customized; front panel can be silkscreened.*

LED illumination
Intelligent RGB LED system offering a variety of color combinations.

Locking system
Automatic lock activated by Smart Card or RFID (optional).

Anti-condensation glass
Glass doors treated with a special coating to prevent condensation.

Dimensions and weight
Width: 1010 mm | 39 3/4"
Height: 632 mm | 24 7/8"
Depth: 398 mm | 15 11/16"
Weight: 71 kg | 156 lbs

Eight taps
Eight independent taps dispense up to 8 different wines at two separate temperatures with three programmable pour volumes.

Notes
Designed to preserve wine quality for up to approximately four weeks by introducing inert gas (Nitrogen or Argon) to limit oxidation. Silent professional cooling keeps wines at optimal serving temperatures.

Technical specifications

• Model family: Series 4 (OTTO SELF)
• Number of taps: 8
• Cooling zones: 2 independent zones with separate compressors
• Temperature range: 6°C to 22°C (per zone)
• Dispensing doses: Up to 3 pour volumes selectable via mechanical buttons
• Card reader: Horizontal card reader; supports chip and RFID cards (barcode reader optional)
• Software: Connects via LAN and optional Wi-Fi using TCP/IP; compatible with Wineidea management software
• Bottle lifting: Pneumatic pistons
• Gas preservation: Nitrogen or food-grade Argon (cylinder/generator not included)
• Cooling system: No-frost, low-noise professional refrigeration
• Airflow: Frontal airflow design allowing full encasement
• Display: TFT color display
• Illumination: RGB LED system
• Locking: Automatic lock activated by Smart Card or RFID (optional)
• Anti-condensation: Special coating on glass doors
• Dimensions (W×H×D): 1010 mm × 632 mm × 398 mm
• Weight: 71 kg
