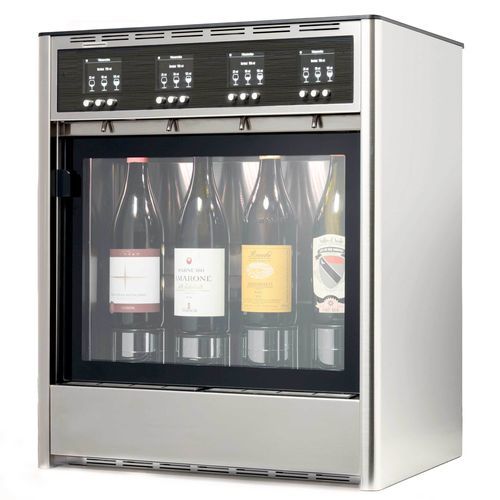

Countertop wine-by-the-glass dispenser QUATTRO SELF

commercialfor barfor restaurant

Product Overview
QUATTRO SELF is a four-bottle wine dispenser for small businesses, wine tastings and hospitality venues. It is a refrigerated display cabinet that preserves, refrigerates and serves wine from the bottle to the glass. Inert gas (Nitrogen or Argon) is injected into bottles to prevent oxidation and preserve aroma and flavor for up to about four weeks.

Main Features

• Horizontal Card Reader — Series 4 models have a horizontal card reader for easier access; RFID reading optional.
• New Wine Tap Technology — Motorized pump clears nozzle residues to improve preservation and reliability.
• Motion Sensor — Activates displays only when people are nearby to save energy and extend component life.
• TFT Color Display — Color display for quick identification of white and red wines.
• Quiet Cooling — No-frost professional cooling system, silent and reliable.
• Frontal Air Flow — Frontal airflow design allows full encasement without top or rear clearance.

Operational and Technical Highlights

• Use and Activation System — Operates in behind-the-bar mode or self-service with chip/RFID or barcode reader.
• Service Temperatures — Adjustable from 6°C to 22°C.
• Pours — Up to three programmable pour volumes via mechanical buttons.
• Software Connection — Module connection via LAN (wired) and Wi-Fi with TCP/IP protocol.
• Bottles Lifting System — Pneumatic piston lifting system.
• Gas — Uses Nitrogen or food-grade Argon to protect wine from oxidation (cylinder or generator not included).
• Wine Card — Supports chip or RFID cards.
• Customizations — Machine color customizable; front panel silkscreen available.
• LED Illumination — RGB system with multiple color combinations.
• Locking System — Automatic lock activated by Smart Card or RFID.
• Anti-Condensation Glass — Glass doors treated to prevent condensation.

Dimensions and Weight
Width: 528mm | 20 13/16"
Height: 632mm | 24 7/8"
Depth: 398mm | 15 11/16"
Weight: 42kg | 92.5lbs

Additional Notes
Designed to preserve and serve wines by the glass with minimal noise and a compact footprint. Inert gases are food-grade and help maintain wine quality over extended periods.

Characteristics / Technical specifications

• Model: QUATTRO SELF
• Capacity: 4 bottles in a controlled refrigerated display
• Activation: behind-the-bar or self-service (chip/RFID or barcode)
• Temperature range: 6°C to 22°C
• Pours: up to 3 programmable volumes via mechanical buttons
• Cooling: no-frost, silent professional cooling with frontal airflow
• Bottle handling: pneumatic piston lifting system
• Gas protection: Nitrogen or food-grade Argon (supply not included)
• Display: TFT color display
• Connectivity: LAN and Wi-Fi (TCP/IP)
• Security: automatic locking via Smart Card / RFID
• Lighting: RGB LED illumination
• Dimensions (W×H×D): 528mm × 632mm × 398mm
• Weight: 42 kg
