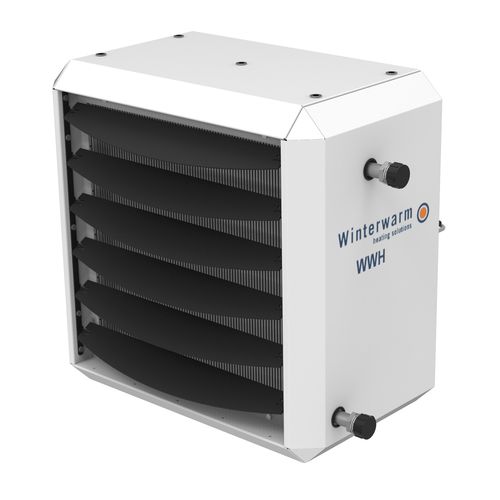

Hot water air heater WWH 120

ceiling-mountedsuspendedwall-mounted

Several air discharge options Simple to control Long lifetime Suitable for various locations Low investment The WWH 120 is a compact water heater with a capacity of 19.5 kW at a water temperature of 90°/70°. The heat exchanger is a combination of copper tubes and aluminium fins which ensures optimum heat transfer. It can be applied in small buildings like shops, warehouses etc. horizontal or vertical air discharge extra louvres available 4-way or 6 way down flow plenum for suspended ceilings on/off thermostat control 5-step switch regulates air volume (optional) long lifetime suitable for all water temperatures (not steam) Heat emission 0kW - 19.5kW Air volume 0m³/h - 1900m³/h Max. throw horizontal 12m Max. throw vertical 4m Connection voltage 230V - 230V Number of phases 1 Nominal current 0.7A Max. electric power input 153W Adjustable fins on exhaust side Yes Heat exchanger material Aluminium/copper Fan type Axial EC ventilator as standard No Sound pressure level at height of 5 metres 0dB(A) - 58dB(A) Height 505mm Width 505mm Depth 380mm Nominal inner diameter 3/4 inch (20) Water-side resistance at dT 20°C 3kPa Max. operating pressure 500kPa Water content 0.9l Weight including filling 21kg Recommended suspension height 2.5MTR Protection class IP54 Heat emission 80/60 15kW Heat emission 70/50 14kW
