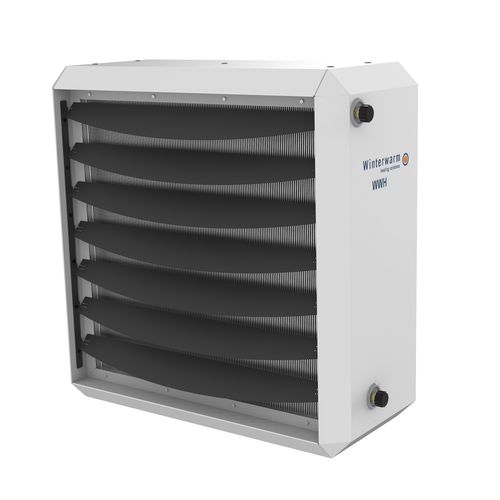

Hot water air heater WWH 365

ceiling-mountedsuspendedwall-mounted

Several air discharge options Simple to control Long lifetime Suitable for various locations Low investment The WWH 365 is a compact water heater with a capacity of 54.4 kW at a water temperature of 90°/70°C. One of the largest units in the Winterwarm WWH range. The heat exchanger is a combination of copper tubes and aluminium fins which ensures optimum heat transfer. It can be applied in small buildings like showrooms, workshops, warehouses etc. horizontal or vertical air discharge extra louvres available 4-way down flow plenum for suspended ceilings on/off thermostat control 5-step switch regulates air volume (optional) suitable for all water temperatures (not steam) Heat emission 0kW - 54.4kW Air volume 0m³/h - 8450m³/h Max. throw horizontal 25m Max. throw vertical 8m Connection voltage 230V - 230V Number of phases 1 Nominal current 2.4A Max. electric power input 561W Adjustable fins on exhaust side Yes Heat exchanger material Aluminium/copper Fan type Axial Sound pressure level at height of 5 metres 0dB(A) - 58dB(A) Height 834mm Width 834mm Depth 530mm Nominal inner diameter 1 inch (25) Water-side resistance at dT 20°C 5kPa Max. operating pressure 500kPa Water content 2.2l Weight including filling 61kg
