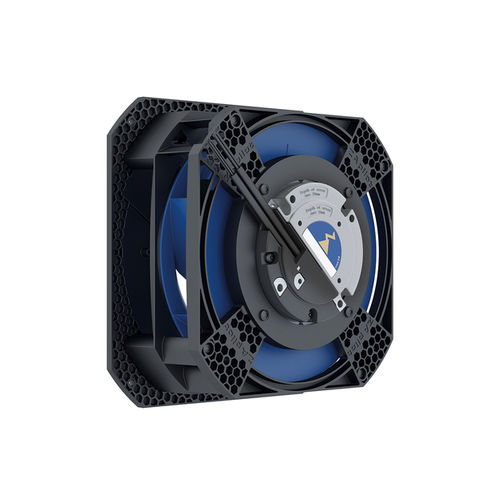

Centrifugal fan ZAPILOT
ductcommercialplastic

centrifugal fan
centrifugal fan
centrifugal fan
Add to favorites
Compare this product


Characteristics

Type
centrifugal
Installation
duct
Sector
commercial
Material
plastic
Air flow

Min.: 0 m³/h
(0 ft³/h)

Max.: 1,600 m³/h
(56,503.5 ft³/h)

Description

Fan system with built-in air feed for even greater efficiency. Modules contain free running ZAvblue impeller with 7 backwards-curved blades in frame sizes 175 to 250 mm. Impeller made of high-performance composite material. Volume flow rate up to around 1,600 m³/h free blowing, max. static pressure increase up to 1,000 Pa possible. Modules for compact installation in customer applications for horizontal and vertical air feed. Properties & special features: Modules contain integrated guide blades to reduce air turbulence and an upright diffusor for targeted enlargement of the flow cross-section. This results in conversion of dynamic pressure into static pressure and thus up to 10% greater efficiency than market standards. Integrated inlet nozzle with option of attaching an intake side protective grille. Easy handling - Plug and play. Motor concepts: External rotor motors: ECblue EC technology: with integrated controller matched to the fan
