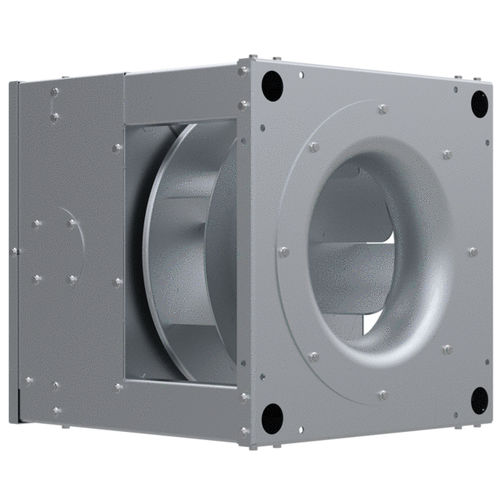

Centrifugal fan ZAVENTERO

extractorductcommercial

The newly developed fan impresses not only with its futuristic appearance, minimalistic and compact design, but also trumps on the inside with first-class fan and motor technology and the new, ingenious routing for air discharge. Here, in particular, the developers kept in mind the user during assembly as well as during use and application. With high-tech fan equipment and ECblue motor technology, this well-thought-out system offers the maximum in perfection and operating performance. The ZAventero sets new standards in performance, handling, efficiency, acoustics, and sustainable behaviour. So reach for the new star in the (kitchen) sky. Ventilation units GR with motor housing made of galvanised sheet steel. Module contains free-running C-impeller made of aluminium with 7 backwards-curved blades in sizes 315 to 450 mm built on the ECblue motor. Inlet nozzle with measuring device for air flow measurement. Volume flow rates up to approx. 11,200 m³/h free blowing, max. static pressure increase up to 1,800 Pa. Impeller with rotating, non-fluted diffusor for high-efficiency levels and favorable acoustic characteristics. By means of the ECblue motor housing and the connection of housing to fresh air, medium temperatures of up to 80°C are possible with just one pipe connection. The ECblue is also very well protected by the ZAventero housing against soiling, such as grease. The ZAventero has the same mounting points as a standard GR module. During assembly, only one pipe connection has to be made for the fresh air supply. The connection to the suction side of the ZAventero takes place via module braces. External rotor motors:
