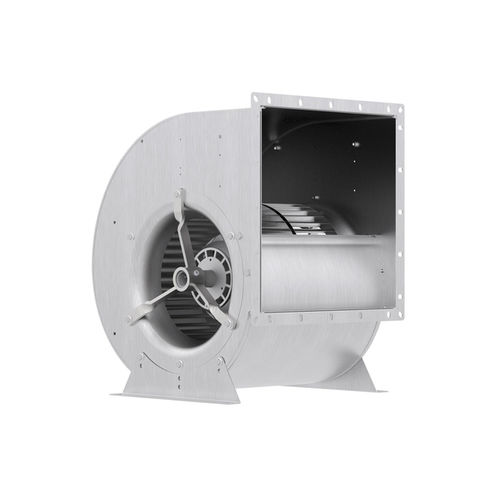

Extractor fan P SERIES
centrifugalductcommercial

extractor fan
extractor fan
extractor fan
Add to favorites
Compare this product


Characteristics

Type
extractor, centrifugal
Installation
duct
Sector
commercial
Material
metal
Air flow

Max.: 21,000 m³/h
(741,608 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Description

Single-ended/double-ended extracting centrifugal fans in the standard spiral housing with forward-curved blades. Available in frame sizes 200 to 450 mm. This allows for volume flow rates of up to 21,000 m³/h and static pressures of up to 1,000 Pa. Properties & special features: Scroll fans in the P series are characterised by their high output density. The high number of blades means the fans have good sound characteristics with very little noise produced by the blades rotating. Housing with discharge flange and fastening bracket. Motor concepts: External rotor motors: AC technology
