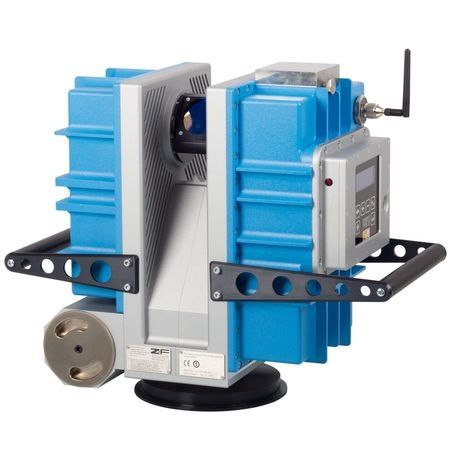

Laser scanner IMAGER® 5006EX
3D

laser scanner
laser scanner
laser scanner
laser scanner
laser scanner
laser scanner
Add to favorites
Compare this product


Characteristics

Technology
laser
Number of axes
3D

Description

Based on the high quality laser scanner Z+F IMAGER®, Zoller + Fröhlich GmbH and DMT GmbH & Co. KG have developed an explosion proof 3D laser scanner. The Z+F IMAGER® 5006EX pioneers surveying in underground mining and industries where explosive atmospheres occur. The Z+F IMAGER® 5006EX is the world´s first ATEX approved 3D laser scanner for use in mining and industrial applications under explosive conditions.The Z+F IMAGER® 5006EX is class I and class II approved according to ATEX directive 94 / 9 / EG. The ATEX directive 94 /9 / EG "Equipment and protective systems intended for use in potentially explosive atmospheres" is a European standard. The ATEX approval for this equipment is widely accepted outside the European community as well. The laser scanner has a nominal range of 79 m. This range of distances makes it possible to use the scanner efficiently in almost all explosive applications. The field of view of 310° vertical and 360° horizontal covers a very large scan area, which enables complete documentation with relatively few scan positions. The stand-alone concept guarantees more flexibility. No external equipment is required to scan in the field. Because of that, additional ignition sources in explosive atmospheres are excluded. System vertical: rotating mirror System horizontal: rotating device Field of view vertical: 310° Field of view horizontal: 360° Resolution vertical: 0.0018° Resolution horizontal: 0.0018° Accuracy vertical: 0.007° rms Accuracy horizontal: 0.007° rms Scanning speed: ≤ 50 r / s (3,000 r / min) max.

Catalogs
