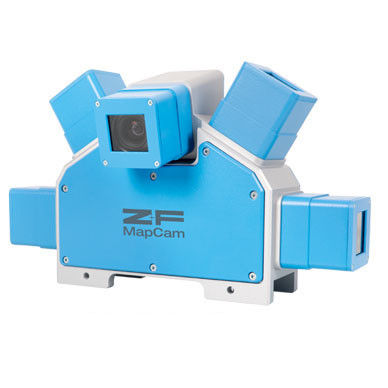

Laser scanner MAPCAM®

2Dself-leveling

With the camera system of Zoller + Fröhlich, color information can be mapped into data measured by the Z+F PROFILER® 9012 in one step. The camera system Z+F MapCam S has high-resolution sensors, a very wide field of view and covers the entire measuring area. The high frame rate of the cameras allows gapless and sharp images at speeds of up to 80 km/h. The camera system is easy to install with just one tool. In addition, it may be used with any mobile mapping system (MMS) which is compatible with the Z+F PROFILER® 9012. The new camera system Z+F MapCam® S+ has high-resolution sensors, a very wide field of view and a high dynamic range with images. Combined with the MapCams they cover the whole measuring area of the 2D laser scanner. The camera S+ is exactly matched to the basic camera C , fully compatible with them and provide very realistic and parallax-free color information. Number of cameras: 5 Frame rate: max. 4 frames/s Operating temperature: 0°C - 40°C Storage termperature: -20°C - 60°C, non-condencing Sensor: IMX264 CMOS size: 2456 x 2054 px Pixel size: 3,5 μm Resolution: 5,04 MPx
