Portable thermal camera T-CAM
fixedindoorinfrared

portable thermal camera
portable thermal camera
portable thermal camera
Add to favorites
Compare this product


Characteristics

Type
fixed
Installation
portable
Location
indoor
Other characteristics
infrared

Description

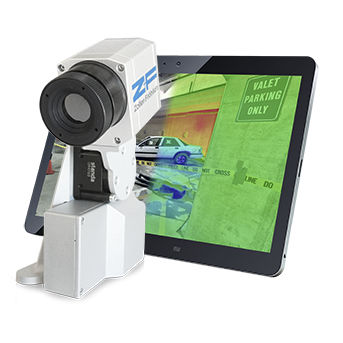

The infrared camera Z+F T-Cam is an external solution to document rooms and objects not only three-dimensionally but also thermally. The camera generates 360° thermal panoramas with a resolution of 382x288 pixels. The infrared information is automatically being mapped onto the point cloud. The infrared spectral range is from 7.5 - 13 μm. By using the Z+F T-Cam, many new opportunities arise in the fields of insurance, facility management, industry and forensics. The T-Cam is easy to mount and is connected to the scanner via USB. Resolution: 382 x 288 pixel Infrared spectrum: 7.5 - 13 μm Working temperature: 0°C - 50°C (32°F - 122°F) Storage temperature: - 20°C - 60°C (-4°F - 140°F) Relative humidity: 20% - 80%, noncondensing Field of View 62° x 49° Default setting: -20°C to 100°C (-4°F to 212°F), 0°C to 250°C (32°F to 482°F), 150°C to 900°C (302°F to 1652°F) Temperature resolution: 4096 increments (12 Bit) Noise Equivalent Temperature Difference (NETD): 0.08 K System accuracy / absolute temperature accuracy: 1 +/- 2°C Number of images for full panorama: 32 (4 rows) Recording time for full panorama: 1:45 min. Pixel thermo-panorama: 2500 pixel / 360° Working range: > 1.6 m (4.8 ft) Vertical field of view: 284° Horizontal field of view: 360° T-Cam: 76 mm x 197 mm x 170 mm (3" x 7.75" x 6.7") Weight 0.85 kg (1.87 lbs)
