Undercounter Dishmachine (High Temperature Sanitizing):
NEW! The Avenger HT is packed with value added standard features and is perfect for small restaurants, coffee shops, quick service restaurants, bars, small health care facilities and convenience stores.
The resource efficient Avenger HT uses only 1.1 gallons per rack and delivers exceptional performance with its Sani-Sure feature that assures a proper sanitizing rinse water temperature. With features like a push-button start and a pumped drain it's easy to install, operate and maintain.
In short, the Avenger offers more standard features than any other brand. The Jackson Avenger HT is fully operational with all the features you need for optimum cleaning performance!
|
|
Packed with value-added standard features, the Avenger LT is perfect for small restaurants, coffee shops, bars, QSRs, small health care facilities and convenience stores. And it's now Energy Star qualified, using only 1.2 gallons (4.5 liters) of water per rack and cleaning 24 racks per hour. Product alarms alert user when machine runs out of chemicals. Two-minute automatic cycle. Powerful 3/4 HP wash motor. Push-button start. Auto-fill. Above-water scrap tray. Built-in detergent/rinse pump. Automatic pumped drain for wall- and floor-drain installations. Solid-state timer with electromechanical components. Door safety switch. Manual override for extended wash and deliming. 304 stainless steel construction. c/UL/us and NSF listed.
|
|
Front Loading Dishwashers with Thermo-Stop System
Rotating wash and rinse. Heated by means of shielded elements. Built-in rinse water boiler. Automatic rinse dispenser. Thermostatically adjusted: wash 60 ºC, and rinse 90 ºC. Thermo-stop rinse device at 83 ºC. Thermometers for wash and rinse water temperature. Drain pump and drainage cycle. Safety thermostat. Safety switch for door opening. Capacity for dishes Ø 32 cm. Basket size: 500 x 500 mm. Basket equipment: 1xCT-10, 1xCP-16/18 and 4 cutlery containers.
|
|
STS 60 dishwasher with two filters:
- easily removable and stainless steel wash tank filter
- large safety suction pump filter easy to remove and clean
- the upper and lower revolving wash arms are built of stainless steel and designed to ensure maximum pressure and distribution. The upper and lower revolving rinse arms in stainless steel are adjustable and the jets of water are calibrated to deliver the exact amount of rinse water.
|
|
The use of Mod. C90 E, due to its capacity and washing
power, is particularly adapted for pastryshop, bakery,
gastronomy and ice cream environment.
Machine housing in satin finished stainless steel 18/10
(AISI 304).Rotating upper and lower 4 spoke wash arms
made in stainless steel 18/10 (AISI 304). Rotating upper
and lower 2 spoke rinse arms in stainless steel 18/10
(AISI 304). Stainless steel boiler with Incoloy heating
elements.
Tank filter covering whole tank surface and pump suction
filter easily removable for end of day cleaning.
Cycle stop door microswitch in case of door opening
during cycle.
Electronic control with digital Display for showing the
temperatures and the functioning parameters of the
machine. Four wash cycles are available: 2 min., 4 min.,
6 min. and intensive cycle with 10 minutes washing
time. It's possible to connect the electronic control to a
PC for saving all the HACCP sensitive data.
The machine is equipped with height adjustable feet.
|
|
DISHWASHER ENERGY EFFICENCY CLASS
ELECTRONIC DISHWASHER
• 12 covers
• Low noise emission 43 dB (EN704- 3)
• 4 temperature 40/50/65/70 °C
• 6 washing programmes, 1 automatic
• Turbodry
• Automatic programmable
•Warning lights to indicate shortage of salt,
polish or water
• Height adjustable basket
• Inside light
• Total protection against flooding
|
|
Glasswasher SL-20 230/50/1
· Wash glassware, cups, cutlery, saucers, etc.
· Fix cycle timer.
· Constructed from AISI-304 2B stainless steel incorporating the highest quality components.
· Inside of machine with rounded finish, i.e. no sharp corners, to prevent dirt build-up.
· Flush-mounted wash spray arms made of 25mm diameter stainless steel tube: increase in useful wash water volume and reduction of hydraulic circuit losses.
· Easy-to-assemble, boltless rinse spray arms with a neat and simple look.
· Automatic rinse aid dosing equipment.
· Watertight controls.
· Adjustable thermostats in tank and boiler and safety thermostat in boiler.
· This machine has been designed and manufactured in accordance with the specifications laid down in European directives 89/392/EEC and 73/23/EEC.
· Please note: as a result of continuous product improvements, these specifications are subject to change without prior notice.
|
|
One-button operation, with simple language-independent colour coding.
Unique hygiene concept with quadruple filter system - including "Mediamat Cyclo" wash water purification system.
Automatic self-cleaning programme at the end of the dishwashing day.
WIHTec (Winterhalter Indirect Heating Technology), with no heating elements, no crevices and no deposits.
Optional built-in water softener for continuous washing cycles, with no need to pause for regeneration.
|
|
Single-button control with simple language-independent colour coding.
Unique hygiene concept with fourfold filter system including "Mediamat Cyclo" wash water purification system.
Automatic self-cleaning programme at the end of the day.
Exclusive WIHTec (Winterhalter Indirect Heating Technology) system - no heating elements, no internal crevices and no deposits.
Optional built-in water softener for continuous washing, with no need to pause for regeneration.
Special washrack for trays and containers included in the basic model.
|
|
|
Spotless cutlery, without polishing - that's what the GS 310 can give you. A welcome time savings for your service staff and probably for your guests as well. One push of a button is enough to rinse the washed cutlery - in combination with the right water treatment, your cutlery can be hygienically clean without any fuss, and after a short drying time, it'll be spotless and shining!
|
|
The pot and utensil washer C 68 E, thanks to its polyvalence, is particularly recommended for pastry shops, gastronomy and ice cream shops. This machine can also be used as a normal dishwasher*. Its reduced dimensions allow the installation underneath tables, saving much space in the room. Single skin 18/10 stainless steel structure, with fine satin finish,
All controls and electric components are easily accessible. The rotating wash and rinse arms are easily removable for the daily maintenance and cleaning, just like the tank filter and pump suction filter Boiler and heating elements are made of corrosion-proof stainless steel Incoloy. A magnetic safety micro-switch stops the cycle in case of accidental door opening. Three wash cycles available: 60 - 120 -240 seconds.
|
|
FV 40.2
unique advantages
in a forward-looking concept
in a new design
and the latest water softening device ActivClean
|
|
Performance specifications
Shortest programme duration*: 23 mins.
Application: Office crockery
Programme cycles/day: max. 5
* hot water (65°C) fill
Control system
Novotronic controls and a 3-digit 7-segment indicator, single-knob controls with 'Start' button
Number of programmes: 6
Programme sequence display
Features
Large wash cabinet with 2 wash levels
Integrated water softener
Drain pump
Hot water fill possible
230V 13amp plug in connection
Waterproof System
Dispensing technology
Powder detergent dispenser
Dispenser for liquid rinsing agents
Connection for dispenser pump for liquid products DOS G 60 Module
Cleaning technology
Fresh water system
Design
Freestanding front loading machine with bottom-hinged door,
straight fascia, with lid/built-under unit,
Outer panelling and front in white
High-grade stainless-steel wash cabinet
2-skin construction
|
|
Front loading glasswashers / plate washers
A range of front loading dish and glasswashers perfectly suitable for small size kitchens: they are equipped with proven components and modern technological features, making them easy to use and clean.
double walled door
door safety
built-in rinse-aid pump
stainless steel filters
fully automatic process
Glasswashers
hourly flowrate: 30 racks
rack, 400 x 400 mm
cycle: 120 seconds
power supply: 1P 230V + Earth
optional: built-in water softener
Plate washers
washers (depending on models)
hourly flowrate: 30 / 20 racks
rack, 500 x 500 mm
cycles: 120 / 180 seconds
power supply: 3P 400V + Neutral + Earth
optional: 1P 230V + Earth power supply - built-in water softener - drainage pump - increase
|
|
OR 50
Comfortable table arrangement
The dish basket lifting and lowering device guarantees an excellent ergonomic working position.
Round basket - easy to handle
Close the lid - and the machine can be used as working surface
Double walled construction
|
|
The Electrolux dishwashing range is produced for customers with the highest conceivable demands for good efficiency, economy and ergonomics for dishwashing operation. The product range consists on glasswashers,
undercounter dishwashers, hood type dishwashers, rack type dishwashers, flight type dishwashers and pot and pan washers. The WT55 hood type dishwasher has a capacity of 65 baskets per hour.
|
|
|
|
|
|
Performance specifications
Shortest programme duration*: 60 Sec.
Throughput* plates/h 1080
Baskets*: 60 baskets/h
* hot water (65°C) fill
Control system
Electronic controls
Number of programmes: 3
Membrane switches with LED indicator for tank and boiler temperature
Single-knob controls with colour-coded status indicator
Automatic programme start when hood is closed
Features
45 l tank
7.5 l boiler
Powerful circulation pump
Integrated boiler with pressure-boosting pump for final spray rinse
Final rinse temperature selectable between 85 and 65°C
Level-fill indicators for liquid detergent and rinse aid
Hot water fill possible
Three-phase supply
Single-phase version available
Dispensing technology
Dispenser for liquid rinsing agents
Dispenser pump for liquid detergents optional
Connection of DOS modules C 60, C60/1 and G60 possible
Cleaning technology
Tank system
Suds cleaner
Drain pump
Rotating spray system (top and bottom) with separate spray arms for washing and rinsing
Quadruple filtration system
Cabinet with low-profile heater elements
Design
Hooded pass-through machine
Stainless-steel outer panelling
Linear and corner installations possible
Cabinet and hydraulic circuit made from high-grade stainless steel
|
|
| ... products without information |
| |
|
|
|
|
Specifications

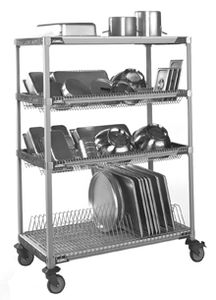

Trolley for dishwasher racks
Sturdy construction made of anodised aluminium : light-weight, easy to handle
4 heavy-duty swivel wheels
Dishwasher racks not included
Option: 2 wheels with brake or silent wheels
--------------------------------------------------------------------------------
Features
Especially shaped runners to prevent racks form tipping over during transport.
Option: dip tray.
Ref: 1 620 031
--------------------------------------------------------------------------------
Watson 8
Watson 8: with 8 levels.
4 swivel wheels Ø 125 mm in non-marking grey rubber with circular buffer to protect walls and trolley.
--------------------------------------------------------------------------------
Watson 2 x 5
Watson 2x5 : with 2 compartments of 5 levels.
Steering hande
4 hard-wearing swivel wheels Ø 160 mm in non-marking grey rubber. 4 corner buffers to protect interior and trolley.
--------------------------------------------------------------------------------
Product range
WATSON 8 WATSON 2 x 5
Number of runners 8 2 x 5
Distance between runners 170 mm 170 mm
Useful size (L x W) mm 500 x 500 500 x 500
Overall size (L x W x H) mm 620 x 660 x 1675 620 x 1290 x 1100
Ref.
1 420 362 1 420 363
|
|
|
|
