SatenGlas®
Quality opacity
The most opaque satin product in the range. Its applications for decoration and construction in general are extremely varied. Highly recommended for facades.
Also available in Jumbo size.
CHARACTERISTICS
Colours: extraclear, white, bronze, grey, green and pink.
Thickness: 3, 4, 5, 6, 8, 10, 12, 15 and 19 mm.
Size: Standard 201, 225, 240, 252 and 600 x 321 cm
Optional: 180 x 321 cm.
(Also available: laminated and mirror).
ATTRIBUTES AND QUALITY
> Base: float glass norm UNE-EN 572-2
> Highly resistant to stains and fingerprints.
> Facilidad y sencillez de lavado.
APPLICATIONS
Ideal for
> creating atmospheres in decoration and interior architecture,
> designing furniture, doors, kitchens, baths, stairs, windows,
> building construction and exterior architecture, facades. |
|
To develop solutions and to propose alternatives to your projects, here another alternative of our range. The goal of our constructions: to fall under your environment.
Door frames of 50 mm
Opening right or coplanar round-offs of 57,5 mm outside
Central amounts for frame with 2 casements with or without brought back beat
System with joint of beat and central joint
Possible integration of interior shutter beating on opening
Great choice of profiled with the curved or right forms
|
|

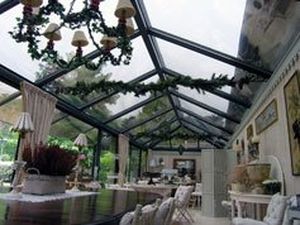

Winter gardens offers a wonderful quality of life, it's your living space of glass, your loggio to the garden, your glazed balcony, your swimmingpool in the winter garden, your glazed roof or your covered terrrace.
With the Finstral-winter garden system and the competent consultation from the Finstral partner in Europe you will find the right solution.
The system features:
Wide range of types and is made on request.
Easy care and low-maintenance thanks to the insert of weatherproof, long-lasting materials.
The basic construction establishes a steel structure, to justice the static demands.
An increased thermal insulation value can be realised by the insert of a more-chamber-PVC-profile.
The insert of high-quality thermal and sound insulation glasses is standard.
To regulate the climate in the winter garden, there are special ventilation systems and high-quality sun-protection glasses in the product range.
Extensive range of colours and surfaces.
Wide range of opening types.
Generally the roof is available with an aluminium covering on the outside.
The wall elements are also available with aluminium covering and in all RAL-colours.
Finstral has a long-lasting experience with over 15.000 produced winter gardens. |
|

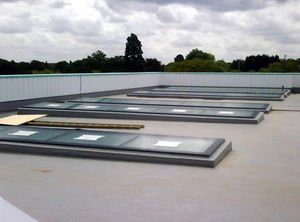

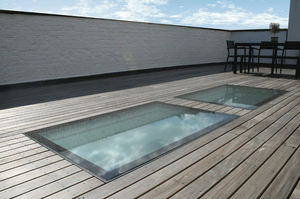

Skylight
• Appearance : grid, vertical line façade
• Identical structure and capping profile sections for façade and glazing continuity
• 16 to 32mm infill
• Horizontals and verticals assembled at right angles to provide seamless drainage
• 18° to 60° roof pitch
• Integrated rooflight
|
|

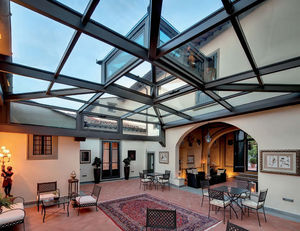

A glass roof will transform a room that has few or no windows into a light, naturally ventilated space. Particularly effective for kitchens, stairwells, restaurants and shops, they add height to a low room and can make a dramatic architectural feature. A light-filled glass building can be created from an existing flat-roofed building by simply replacing most of the ceiling with a lantern roof.

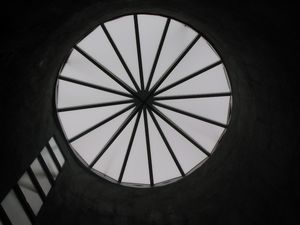

Double curvature
For the atrium entrance to a villa in Monaco we used curved glass to create an ogee profile to the roof. |
|
The self-cleaning glazing clearly reduced the frequency of cleaning: the sun and the rain work for you!
You save spare time: finished the drudgery of cleaning.
You clean your glazings more easily and made reduced maintenances. You profit from a good vision through your glazings, even in rainy weather.
You contribute to environmental protection by reducing the use of detergents.
The self-cleaning double glazing combines with the other functions of glass: Thermo isolation of winter and summer, soundproofing, protection of the goods and the people.
|
|
| The all new Solatube® 160 DS Daylighting System sets performance standards never seen before. This model features our patented Raybender® 3000 Technology and LightTracker™ Reflector to deliver an Effective Daylight Capture Surface (EDCS) significantly higher than our previous 10 inch and 14 inch Solatube models and nearly double the EDCS of similar size copycat products. Highly effective and simple to install, these models can transform dark interior rooms and light more expansive spaces with multiple units creating a unique architectural effect. Ideal for bathrooms, hallways/corridors, utility rooms, dens/home offices, kitchens, dining rooms and closets. |
|
The all new Solatube® 290 DS Daylighting Systems set performance standards never seen before. These models feature our patented Raybender® 3000 Technology and LightTrackerTM Reflector to deliver an Effective Daylight Capture Surface (EDCS) significantly higher than our previous 350mm Solatube models and nearly double the EDCS of similar size copycat products. Highly effective and simple to install, these models can transform dark interior rooms and light more expansive spaces with multiple units creating a unique architectural effect.
Ideal for:
- Bathroom
- Hallways
- Utility Rooms
- Dens/Home Office
- Kitchens
- Dining Rooms
- Closets
|
|
Light Tunnels SLT
The SLT light tunnel is a completely new product in Fakro’s range whose main role is to supply the interior with the proper amount of natural light. The application of such skylights makes it possible to illuminate all rooms in the building, even those which cannot be fitted with roof windows or vertical windows. Dimly lit interiors such as bathrooms, dressing rooms, corridors, staircases or basements can be particularly uncomfortable to use. Thanks to the light tunnel the natural light gets into the building enhancing the user’s comfort and enabling electricity savings.
The SLT light tunnel conveys the daylight which gets into the light transmitting tube through the dome mounted onto the roof. Subsequently, the sun’s rays reflected from the walls of the flexible, reflective tube are directed downwards onto the light diffuser. The diffuser fitted into the ceiling spreads the light, evenly illuminating the whole interior. The light tunnel may also be used at night, after installing a light kit.
|
|
Expansive spaces require extraordinary amounts of natural light so we designed the SolaMaster Series. With the highest Effective Daylight Capture Surface (EDCS) available, these Daylighting Systems feature our largest aperture tubing and patented LightTrackerTM Reflector for effective daylight harvesting. With our Spectralight® Infinity tubing, these systems make it possible to bring natural light deep into buildings where natural light has rarely been an option.
The Solatube® 21-C features a patented transition box that seamlessly converts the round tubing to a square diffuser. This transition box easily fits into standard commercial ceiling grids. The Solatube modular design offers the ability to be reconfigured when spaces need to change. For hard ceilings, the transition box has a sleek, integrated, self-trim feature, eliminating the need for finishing trim work. Ideal for Retail, Schools, Offices, Medical Rooms, Stairwells, Lobbies and Family Rooms. |
|
Expansive spaces require extraordinary amounts of natural light so we designed the SolaMaster Series. With the highest Effective Daylight Capture Surface (EDCS) available,these Daylighting Systems feature our largest aperture tubing and patented LightTracker™Reflector for effective daylight harvesting. With our Spectralight® Infinity tubing, these systems make it possible to bring natural light deep into buildings where natural light has rarely been an option.
The Solatube 21-O brings high-performance daylighting to spaces without a finished ceiling. The Solatube 21-O uses Spectralight Infinity tubing to bypass light-absorbing structural members and deliver highly diffused natural light with a less obtrusive roof opening than required with traditional skylights. Additionally,this system is excellent for retrofits because it can be installed from the roof, eliminating the need for interior scaffolding or lift systems. Ideal for warehouses, manufacturing plants, gyms, lofts and unique architectural effects.
|
|
SOLATUBE INTERNATIONAL INC. INTRODUCES SOLATUBE DESIGNER TOUCHES
Solatube International Inc., the worldwide leading manufacturer of Tubular Daylighting Devices, has introduced the first-ever line of designer daylighting options, Solatube Designer Touches. This premium accessory line provides contemporary design options for homeowners and designers integrating daylighting into their projects. The new Solatube line is the first to include Dual Lens Array Technology, offering a variety of style, Effect Lenses, and Diffuser Lenses.
(1) Choose Your Style:
White Trim - This low-profile, white finish blends with the ceiling plane for a clean, unobtrusive look.
Stainless Tone Trim – This modern designed trim is ideal for matching traditional lighting fixture finishes or accenting room décor.
Frosted Shade – This lightly frosted cone provides a clean, contemporary look by providing a visual cutoff to achieve more soothing, comfortable light in the space.
(2) Pick Your Diffuser:
VusionTM Diffuser – Artfully blends daylighting on the ceiling plane and has a fine diamond pattern for aesthetically pleasing light.
OptiView® Diffuser – Offers crystal clear daylight and the highest light dispersion for a unique view of the sky.
(3) Select Your Effect:
Natural Lens – For clear, white sunlight, this lets in all the beauty of daylight without heat or UV radiation.
Warm Lens – Provides calm, soothing light for any interior.
Softening Lens – This leans creates a subtle lighting effect by reducing glare and light for a softer look.
Warm Softening Lens – This lens blends the effects of the Warm and Softening Lens for pleasant subtle lighting. |
|
The light where it is not awaited!
Sun Tunnel, in flexible or rigid version, conveys the natural light of the roof to the ceiling in the traditionally blind parts of the house: room of water, corridor, entered... where window poses is not possible.
First tubular skylight with the esthetics of a roof window, Sun tunnel is integrated in any discretion on all breeder materials (roof tiles and slates) and on slopes of roof of 15 into 60°.
Inside the part to be lit, the natural light is diffused via a white ceiling lamp. The diffusion of the light of flexible Sun Tunnel by beautiful clear time corresponds to a lamp with incandescence of 60W approximately. With rigid Sun Tunnel, the visible quantity of light is three times more importante* that with flexible Sun Tunnel. Sun Tunnel is presented thus in the form of a true ecological alternative to the bulb.
* Luminous output of flexible Sun Tunnel: 2100 lumens and of rigid Sun Tunnel: 6500 lumens, calculated for a theoretical length of 1m under optimal conditions external of estival light.
FEATURES:
Highly reflective rigid tube: telescopic tube of 2 X 0,62 m, diameter 350 Misters Up to 6 m with the use of extension (S).
Tube flexible metallized reflective: maximum length 2 m recoupable for lower distance, diameter 350 Misters.
Sleeping out of polyurethane and connection of sealing integrated.
Diffusing ceiling lamp equipped with a translucent acrylic double glazing
Powerful thermo isolation characterized by coefficient C = 2,2 W (m2. K)
In options: Kit of auxiliary light settling behind the ceiling lamp. Rigid extension recoupable of 90 cm.
|
|
The SFX Skylight is an easy to install product of simple design. It offers arange of features, the most important being the new, ‘warm’ frame, low-E design glazing with a toughened outer pane and the simple but innovative method of installation. The combination of these factors enabled us to create the energy saving SFX Skylight. The design minimizes the risk of condensation on cooler parts of the window.
SFX skylights can be installed above and below, or adjacent to each other.
They are recommended both for low-pitched roofs with bitumen roof covering, and exposed locations.
- Made from vacuum impregnated pine wood, coated with water based clear acrylic lacquer.
- Quick and easy to install.
- Installation template provided to enable accurate cutting of roof opening.
- Suitable for roof with pitches between 15° and 85°.
- Set deeper in the roof for better insulation, and supplied with a perimeter seal.
- Wider range of accessories specifically for skylights.
|
|
Features
The BDL L-shaped combination window can be opened in two distinct ways: tilting or turning. Tilting of the sash - max. 11cm turning - up to 90 degrees.
Both opening methods are performed with the use of one handle positioned on the side of the sash. This window type comes with a lock as a standard. It can be opened to the right - BDL-R or to the left - BDL-L.
4H-14-33.IT one-chamber glazing unit with the external pane toughened and the internal pane made of laminated glass, which increases the windows' safety, U-pane = 1.0[W/m2K];
new frame and sash structure;
innovative hardware;
new, double window sealing system;
operated by new handle;
wide range of accessories;
suitable for roofs with pitches between 15 and 55 degrees, installed with EU flashing.
Description:
The L-shaped combination windows are installed where the roof meets a vertical wall. These windows serve to extend the roof win- dow into the wall. This results in the amount of light entering the room and the field of view being greatly increased. The L-shaped combination windows can be combined with roof windows of any type.
The new line of L-shaped combination windows is characterised by a new frame and sash structure, innovative hardware and newly de- signed handle. The applied hardware enables a tilt and turn opening system - identical to the one used in vertical windows.
In this new range of L-shaped combination windows there is a dou- ble sealing system; peripheral seal and adhering seal.
|
|
The FW thermally insulated escape window is side-hung and therefore side-opening. Once unlocked, the sash can be opened to 90°. A gas piston, fitted in the top part of the window makes opening easier, holds the sash stable when opened and prevents it slamming shut accidentally. The escape window is available in two versions, right opening FWP-R or left opening FWP-L
Note: View from the outside to determine whether a right or left opening window is required.
The large size of the escape window enables safe and easy access to the roof. These windows are recommended for all heated rooms.
Also available in conservation style.
- Manufactured from pine wood, vacuum impregnated, with two coats of clear acrylic lacquer.
- Handle positioned halfway up the sash for ease of opening.
- Suitable for roofs with pitches between 15° and 55°.
- Requires special flashings ESW, EZW, EH W and ELW(Note: flashings for pivoting windows are not suitable for escape windows).
- Comes with templates to facilitate installation.
- Wide range of accessories available, similar to that available for roof windows.
|
|
| Panoramic window of great dimension made up of two parts, transforming itself into balcony of a simple gesture. High part opening by projection (maximum 45°) and left low swivelling to the vertical creating a space balcony. Sleeping and opening in treated massive pine, completion wood TOPfinish varnish. Glazing version Any Comfort. For slope of 35 with 53°. Sealing by specific kits of prefabricated connections. |
|
| Curved fixed window of wood allowing to increase the luminosity. To install partly high windows GHL or of the same GGL width (on the photograph: GIR with GHL and GIL). The cleaning of window GIR is carried out by the window located below. Version Comfort. Completion wood TOPfinish varnish. |
|
| Fixed window in massive pine. To install partly low windows GHL or of the same GGL width (on the photograph: GHL and GIL). This window makes it possible to increase the luminosity and the sight on outside. Moreover, it creates the patio door spirit in the roofs. Version Any Comfort. Completion wood TOPfinish varnish. |
|
Complementary windows vertical VFA/VFB
Vertical window in massive pine to associate with a roof window to form a canopy of angle. Swinging opening: window VFA equipped with a handle on the right opens towards the interior to guarantee a maximum security. On model VFB, the handle is located on the left. They combine with roof windows GHL or of the same GGL width, installed on slopes of 15° with 55°. Version Any Comfort, completion wood TOPfinish varnish |
|
Roof window structure wood with polyurethane hull moulded with opening by electric rotation. Lend to connect, equipped with an engine, a multiple control device and a detector of rain.
electric Pre-equipment allowing to connect 2 complementary motorized equipment directly (shutter and/or venetian blind).
Operate by remote control programmable radio frequency allowing to control several windows individually or simultaneously without wiring between them.
Versions Comfort and Any Comfort. |
|
Motorized roof window lends to connect, for installation out of reach or wish of remote-controlled handling. Equipped in series with a detector of rain for automatic closing of the window in the event of rain.
Window pre-equipped in opening factory by motorized rotation (driving of opening integrated and invisible when the window is closed). Easy cleaning by complete reversal of the window (manual disengaging automotic.
The window opens using a simple pressure on the button of the remote control. The manual opening is maintained.
Operate by remote control programmable radio frequency allowing to control several windows individually or simultaneously without wiring between the products. System highly protected, compatible with all produced marked io.
Massive pine. Versions Comfort and Any Comfort. |
|
Maximum security for the roof windows
VELUX democratizes the security of the people by generalizing the laminated glazing of series to the essence of its range as of the version comfort.
Field of application:
In all the parts with living residences like, in its version great comfort, establishments receiving of the public. An invitation to make enter liberally the natural light by the roof, in full safety.
Characteristics produced:
Combination of performances of the windows comfort especially studied to adapt to the environment of the roof:
Reinforced security:
Laminated glazing of security 4x14x33.1 conforms to the standard INTO 12600.
Its intercalated flexible film, genuine protective barrier, maintains breakings of glass in place in the event of accidental shock.
Comfort of summer:
Glazing with solar control - solar Factor naked window Sw=0,23
Conformity RT2005 without need for external solar protector in H1a/H2a zones.
Thermo isolation of winter:
Glazing with low emissivity. Uw = 1,7-1,9 (W/m ² K) according to type of installation, slope < 60°. Conformity RT2005.
|
|
Window with Anti-noise system of Rain (ABP) Any Comfort
Equipped with the new exclusive technology ABP (Anti-noise of Rain) on the whole of the components of the window, the new window any comfort lies within the scope of a reinvented design making it possible to divide by 2 the noise of impact of the rain compared to a traditional roof window.
The window any comfort profits from an exceptional dynamics of performances, to anticipate the risks of our external environment in a durable spirit of comfort.
Anti-noise system of Rain:
- Noise of the rain divided by 2*
- Sound Level: 48 dB (standard NF IN ISO 140-18), below the threshold of alarm clock of 50 dB
Insulation reinforced in winter:
- 35% of energy saving **
- Uw =1,6 W (m ². K) according to standard IN ISO 12567-2
Insulation reinforced in summer:
- 77% of the heat stopped in summer
- Solar Factor Sw = 0,23
Security of the people: laminated glazing of security (standard IN 12600)
Reinforced soundproofing (air noises road/):
- Classification of frontage 35 dB (A)
- Classification ACOTHERM AC2 Th9
Facilitated maintenance: Clear system & Net
- Clearly: in rainy weather
- Net: clean longer
* compared to the window comfort
** compared to a nonthermal double glazing |
|
Roof window structure wood with polyurethane hull moulded, white completion. Double system of opening: projection and rotation. Opening by projection towards outside, until 30°. Proposed in version Comfort.
Specifically for wet parts, this window is without maintenance. Slopes of 15 with 55°. |
|
Rotating roof window in triple laminated glazing, very high insulation conceived to answer the programs of passive houses or BBC (buildings low consumption of energy). Compatible with the standard connections and equipment (available in models GGU and GGL INTEGRATED (R) on request).
Coefficient of thermal transmission very powerful:
- Uw = 1,0 W (m ². K) (IN ISO 12567-2)
- Ug = 0,5 W (m ². K) (IN 673)
Laminated glazing of security: 22.1-10-4-10-4
Spaces of 10 mm filled by gas highly insulation
Maintenance facilitated thanks to Clear treatment the "& Net" of the external glazing |
|
Based on the key values of natural illumination, ventilation, thermal and acoustic comfort of roof windows VELUX, the system for flat roofs or with weak slope (0 with 15°) is composed of a roof window and of insulating twyers-side and is installed on roofings with watertight facing.
3 alternatives of opening:
- Manual by telescopic cane (rotating window GGL Any Comfort)
- Remote-controlled (electric window GGL Integrated Any Comfort)
- Automatic in the event of fire (executory of pneumatic smoke clearing, SEVM-P, version Comfort)
FEATURES:
Dimensions (L X H): 78/94 X 98 cm and 114 X 118 cm
Technical opinion n° 6/06-1654 (model GGL)
Classification AEV: A*3e*9A V*A3
Classification AC: AC1 (Comfort)/AC2 (Any Comfort)
Classification Th: Th9
Thermal coefficient of transmission (Uw): 1,6 W/m2.K (IN ISO 12567-2) (window) and 0,54 W/m2.K (twyers-side)
Implementation: pose on roofing-supports concrete, vat steel, wood
Guarantee: 10 to 20 years (glazing)
Advantages:
- Natural Ventilation by opening of the window or opening of the valve of ventilation integrated into the bar of operation of the window
- Security and resistance reinforced thanks to the laminated glazing of security of the people (standard IN 12600)
- Security-fire: in version discharge system of smoke clearing marked EC: model SEVM-P EC (with thermodeclenchor)
- Compatibility with equipment VELUX (roller shutter, blind of screening...)
The complete system:
- Roof window
- Twyers-side made up of insulating twyers-side (laminated wood and polystyrene) and connection of sealing (aluminum enamelled gray anthracite) ensuring the connection with the roof window |
|
| Roof window adapted to the wet parts. Structure wood with polyurethane hull moulded. Opening by rotation with bar of partly high operation. Just ventilation system with the bar of operation. Standard versions, Comfort and Any Comfort. For slopes of 15 with 90°. |
|
|
|
