We are proud to introduce you to our VENTILATED FAÇADE SYSTEMS, FAVEMANC.
Our company, Gres de la Mancha, S.L. is the Spanish leader in the manufacturing of extruded glazed ceramic tiles “GRESMANC” and ventilated façade systems “FAVEMANC”.
We have two systems: XA and XB with different thickness (40mm and 15mm) and lengths (up to 1350mm) with a wide variety of colours and finishes.
All our products have a low level of water absorption; they are stain-proof, frost resistant and thermal shock resistant. No maintenance is needed.
Despite its resistance, the substructure is very simple and easy to install. We have carried out different quality test in several official laboratories in Europe with successful results throughout. We enclosed a copy of the Spanish quality test (DIT) in English.
You are kindly requested to visit our web site: www.favemanc.com where all our products are in display.
|
|
We are proud to introduce you to our VENTILATED FAÇADE SYSTEMS, FAVEMANC.
Our company, Gres de la Mancha, S.L. is the Spanish leader in the manufacturing of extruded glazed ceramic tiles “GRESMANC” and ventilated façade systems “FAVEMANC”.
We have two systems: XA and XB with different thickness (40mm and 15mm) and lengths (up to 1350mm) with a wide variety of colours and finishes.
All our products have a low level of water absorption; they are stain-proof, frost resistant and thermal shock resistant. No maintenance is needed.
Despite its resistance, the substructure is very simple and easy to install. We have carried out different quality test in several official laboratories in Europe with successful results throughout. We enclosed a copy of the Spanish quality test (DIT) in English.
You are kindly requested to visit our web site: www.favemanc.com where all our products are in display.
|
|
Sophisticated Technique
For decades, buildings all around the world have been successfully cladded with facade systems of Agrob Buchtal. Apart from the typical advantages of the ceramic material, it is above all the sophisticated technique which speaks in favour of KerAion: KerAion facades are conforming to standards, to official approvals and - thanks to their practically unlimited durability - very economical. The open joints ensure an optimal rear ventilation, and the low own weight makes KerAion particularly suitable for the anchoring in critical outside wall layers.
Individual Aesthetics
With a well balanced range of colours, diverse sizes and projectspecific special productions, KerAion facade systems give buildings with large surfaces an individual and aesthetic look. And the Hydrotect coating ensures cleanliness without effort: the formation of fungi, algae and moss is durably prevented. Even graffiti can be easily removed from glazed surfaces.
|
|
TERRART®-Solid offers solid ceramic elements for prefabricated construction, which are available either as a prefabricated façade with pregrouted joints or as a suspended façade. Apart from a rational production, the uncomplicated assembly is advantageous.
A suspended façade construction that is ventilated at the rear offers an ideal way to implement aesthetically suitable and modern architecture.
NBK Ceramic has a comprehensive TERRART® product line, which is adapted to individual specifications and suits the special wishes of customers.
The special TERRART® Flex substructure system offers the flexible basis for almost limitless possibilities.
|
|
TERRART®-Large provides large-format elements, which are individually manufactured according to the clients desired dimensions.
A suspended façade construction that is ventilated at the rear offers an ideal way to implement aesthetically suitable and modern architecture.
NBK Ceramic has a comprehensive TERRART® product line, which is adapted to individual specifications and suits the special wishes of customers.
The special TERRART® Flex substructure system offers the flexible basis for almost limitless possibilities.
|
|
|
|
|
|
We’ve borrowed technology from the aircraft industry to create our QuadroClad cladding
systems. The result is an extremely flat, durable panel available in extra large sizes. QuadroClad panels with a coil coated aluminium skin can be curved or folded. Other skin finishes such as copper and zinc can be created upon request. Our ‘total’ façade system includes an adjustable support system, integrated windows, doors and sun control, ensuring you have everything you need to create the looks and performance you want.
QUADROCLAD
• Dimensions up to 1500 mm x 6000 mm
• Extremely flat panel surface
• Aluminium honeycomb composite technology
• Finishes: coil coated, anodised, copper, zinc and stainless steel
• Integrated support structure
• Individual panel installation
• Simple detailing
• Design freedom in panel shape and joints
• Can be used as exterior ceiling
• Integrated window and door system
• Designed to fit Sun Control systems
• Superior quality and durability
• Virtually maintenance free
• Certified fire performance
• Certified wind load performance
QUADROCLAD 12
• 12 mm thick aluminium panel system
• Low weight per m2
• Optimised for medium wind loads
QUADROCLAD 25
• 25 mm thick aluminium panel system
• Capability to withstand very high wind loads
• Suitable for high-rise buildings
|
|
|
Lightwall is a system for the dry realization to of the ventilated facade much flexible one. Constituted from slabs and special pieces in Polimglass®, a coestruso thermoplastic from the exceptional characteristics, and the dedicated system of structure in aluminum, it is a complete system for the roofing and coating of industrial pieces of real estate, trades them and publics.
|
|
Ventilated facade
PRINCIPLE AND DESCRIPTION OF THE SYSTEM
The tiles pay attention by means of staples of stainless steel to the vertical or horizontal substructure, constituted by vertical posts, anchored to the facade has supported through separators
of regulation.
The positioning of the tile can be realized so much in vertical disposition (greater side of the tiles parallel to the posts) or horizontal
(perpendicular greater side to the posts).
The typical composition of the closing ventilated with PORCELANOSA ceramic tile GROUP consists of the following points:
1. Ceramic tile PORCELANOSA GROUP.
2. Ventilated air chamber.
3. Lifting substructure of fixation anchored to
closing bases.
|
|
CGL Rainscreen System
incorporating stainless steel
CGL's standard stainless steel ventilated façade %u2013 this system incorporates the CGL CS3 support system and 1.5mm thick stainless steel cassette panels.
The system features are %u2013
Exceptional longevity
Modular shadow joints
High quality 316 grade stainless steel
Full system warranty
Simple maintenance requirements
Varied finishes, patterns and colours available
|
|
Architectural Mesh
Metallic weaves, flexible and rigid meshes with many available shapes and designs that allow to cover large external surfaces, create virtual interior rooms or generate visual illusions by combining them with light and colors.
The stainless steel architectural meshes are very verstile both in their applications and in their properties. A large range can be manufactured in the requested characteristics suitable for each project with also the most advisable attachment systems. Outdoor closings for largescale projects that can fulfil both esthetical requirements and functionality in just one material.
Indoor wall and column claddings, ceiling systems, space dividers or filter screening or some other typical uses for these materials.
|
|
Architectural Applications Includes:
Exterior cladding, Column covers, In-fill panels, Fascias and canopies, Clean rooms, Interior wall and partition panels, Equipment enclosures and beam wraps, Trim and accents, Soffits, Parapets, Louvers and sun shades, Cornices
|
|
Continuous Louvre System with chevron 20mm blade
The CLS-system can be fitted to an existing construction and is supported on vertical mullions.
Technical details
- Aluminium chevron blade profiles are clipped into aluminium blade support clips.
- Blade pitch: 20mm.
- Blade height: 20mm.
- Visual free area : 68%.
- Availible with different mullions.
Finishing
Natural anodised: 15 to 22 micron.
Other shades possible.
Powder coated in any RAL finish: 60 – 80 micron.
Manufacture
- Ready made or bar length
- Different types of mullions with 14,5mm, 50mm or 80mm depth.
|
|
|
|
|
|
VENTILATED CURTAIN WALL SYSTEM: URANO
The carrying structure is made up of extruded aluminium profiles, alloy 6060 (EN573 - 3 and EN755-2) in the thermal treatment EN515, having as a unique base a vertical profile right at the axis to the joining point of the panels.
The vertical profile is duly shaped in order to house, without boring or milling (thus not affecting the anodizing or the painting surface protection), the following “original” accessories of the system:
- wall brackets in extruded aluminium (± 30 mm adjustment according to the bracket used);
- support springs (in aisi 301 stainless steel), enabling the horizional and vertical adjustment of the aluminium panel; they are self-locking and complete with antivibration gaskets;
- wall support springs of the thermoinsulating panels in hardened and tempered steel.
The structure can be adjusted differently, oppose the wind and nevertheless allow the thermal expansion of the different components.
The standard depth of the aluminium structure varies from 30 mm. to 195 mm., thickness of the covering aluminium panel not included.
|
|
CGL COPPER RAINSCREEN SYSTEM
CGL's standard copper ventilated façade %u2013 this system incorporates the CGL CS3 support system and 1.5mm thick copper cassette panels.
The system features are %u2013
Excellent panel flatness
Modular shadow joints
High quality oxidized copper finish (blue/green patination)
Full system warranty
Zero maintenance requirements and self healing
Natural variegated appearance
Copper alloys such as brass and bronze also available
|
|
CGL Rainscreen System
incorporating preweathered titanium zinc
CGL%u2019s standard zinc ventilated façade %u2013 this system incorporates the CGL CS3 support system and 1.5mm thick zinc cassette panels.
The system features are %u2013
Excellent panel flatness
Modular shadow joints
High quality oxidized zinc finish (blue grey or dark grey patination)
Full system warranty
Zero maintenance requirements and self healing
Excellent graining and colour consistency
|
|
Faveton has is disposition three types of you lick ceramic. Faveton Buntline with a measurement 60 xs 60 mm, Faveton Java 60 xs 120 mm and Faveton Orona 60 xs 250 mm; with a maximum length of 1500 mm.
The solution of you lick ceramic in the projects is every time more is extended thanks to the esthetic advantages as as much technical. This solution contributes to the skin of the building an esthetic one continued in hollows such as windows, patios, zones of shopkeepers and zone of machines that need to be in contact with the enemy with the free air. You lick Faveton ceramic in addition allow to be a natural paramento the solar heat. The disposition of these can vary following the objectives to obtain.
From Faveton it is had developed systems of standard anchorage for Faveton Lamas, but each project is customized way
|
|
|
|
|
|
FAVETON Hollow is a ceramic slab that has been specifically designed for ventilated facades.
Thanks to its tongue and groove structure on the horizontal joint and the anchoring system used, FAVETON Hollow forms a watertight ceramic façade, preventing the efflorescence and humidity that frequently occur on the inner face of buildings, in cold, wet climates.
This material's excellent technical properties (frost resistance, resistance to chemical aggressions, high mechanical resistance, improvement in acoustics and energy savings in buildings, standard anti-graffiti treatment, etc.) make FAVETON an ideal ceramic material for ventilated ceramic facade solutions.
FAVETON Hollow is available in different formats, in heights ranging from 200 mm to 500 mm and lengths of up to 1500 mm, allowing numerous modular layouts for different project solutions, including combinations with other materials. The special pieces also included in this range are the perfect complement for specific areas of facades.
FAVETON Hollow is available in a wide variety of colours and finishes that reflect all the naturalness and warmth of ceramics.
|
|
|
|
|
|
Faveton has is disposition three types of you lick ceramic. Faveton Buntline with a measurement 60 xs 60 mm, Faveton JAVA 60 xs 120 mm and Faveton Orona 60 xs 250 mm; with a maximum length of 1500 mm.
The solution of you lick ceramic in the projects is every time more is extended thanks to the esthetic advantages as as much technical. This solution contributes to the skin of the building an esthetic one continued in hollows such as windows, patios, zones of shopkeepers and zone of machines that need to be in contact with the enemy with the free air. You lick Faveton ceramic in addition allow to be a natural paramento the solar heat. The disposition of these can vary following the objectives to obtain.
From Faveton it is had developed systems of standard anchorage for Faveton Lamas, but each project is customized way
All the Faveton products are characterized for being a material type porcelánico stoneware, fulfilling all the characteristics technical, below the norm of 3% of water absorption, arriving to give values = or < of 1% of water absorption.
Faveton has an ample range of colors picked up under colors standard (natural and enamelings) and special colors (enameled mates and brightness). Faveton can develop special colors that are not picked up in their letter of standard.
Faveton also puts at the disposal of its clients a technical department that studies new formats (prototypes) for singular projects.
|
|
|
|
|
|

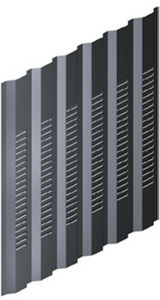

The siding profiled panels are manufactured continuously and cut after the roll-forming process to customer specification.
For structural reasons, panels should not be longer than 6,000 mm.
The thermal expansion due to temperature differences according to weather conditions may affect the aesthetic of a wall. For this reason, it is necessary to take precautions for accommodating the thermal expansions. In most cases, this can be provided for either by a relatively flexible support or a bigger borehole size so that thermal stresses will be avoided.
Aluform Siding profiled panels are mainly suitable for covering walls. They can be installed both vertically and horizontally.
Possible structures for use are:
Exterior shell of a multi-layer wall with interior shell of profiled and spacer; exterior shell of a multi-layer wall in conjunction with steel waffle panels as interior shell;
curtain wall in front of concrete or brickwork walls with intermediate structure and with or without insulation.
|
|
The Aluform cassette is lengthwise-shaped and allows the building to be resistant to the weather in a simple, durable way. At the same time, the visual impression can be influenced in a variety of ways through colouring and surface structure according to customer specification.
Convincing advantages, which every planner, installer and constructor likes to make use of:
low weight
good processing characteristics
high thermal reflectance in summer
corrosion resistant under normal weather conditions
non-combustibility
no maintenance required
|
|
We have developed an extended range of fixed, moveable and, if required, removable architectural louvre products suitable for installation into any structural opening. The Aquarius louvre system can be supplied in factory assembled format or alternatively as a 'component - breakdown' system to ensure a “tailored” solution to any functional, screening or acoustic louvre requirement to any geometric opening shape within the building envelope.
All systems have inherent airflow and weather performance capabilities. Perimeter frame details are available to ensure an integral weathered interface with a variety of glazing, cladding or builders work apertures. Our engineers will be pleased to discuss the selection of the most appropriate system for your requirements.
|
|
|
|
