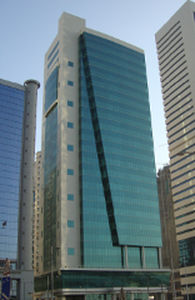

Stick system curtain wall EFP FSS

insulated glass panelaluminum and glasshigh-resistance

Four Sided Structural Glazed CURTAIN WALL system enables the construction of attractive curtain walling, with the benefits of slim sightlines. EFP FSS – vertical and horizontal structural glazed curtain walling system. With only a 20 mm joint for a seamless, continuous glass look with glass thicknesses from 28 to 68 mm. This thermally insulated system consist of many of standard profiles and many custom made profiles are available up on request. Specification summary: EFP 50 FSS is a pressure equalised, mullion drained, thermally broken curtain wall system which consists of 50 mm wide mullions and transoms. The external verical and horizontal sightline (Joint seal) is 20mm. The joint seal is made of extruded EPDM or Silicone profiles, compatible with most silicone sealants, optional this joint can also be made out of silicone sealant. Various FEATURE cover caps are available for this system. Specification summary continued: Glazing—The system is glazed from the outside. Glass should conform the requirements of BS 6262 for thickness and type, in terms of wind resistance, safety and security. Drainage—The system is mullion drained, achieved by meeting the requirements of “Ventilated and drained glazing system” as specified inBS 6262 Thermal insulation—Class 2.1 in accordance with DIN 4108 (2.0-2.8 W m2 K) or EN ISO 10077-1
