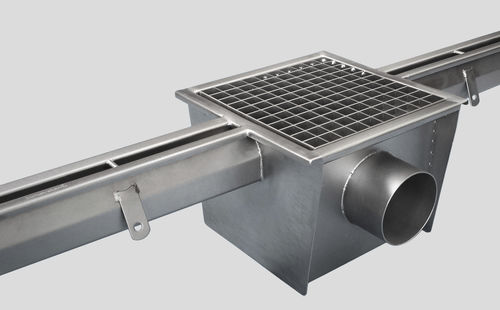

Drainage channel with central slot 2250

stainless steelfloor

Entirely made of stainless steel AISI 304 (or 316 upon request), with a thickness of 2mm, this range is ideal especially for residential buildings, production areas, wineries, dairies, slaughterhouses, fish mongers etc The standard center slot of the channel is 20mm, with a 60mm edge at sight and a channel drainage body of 65mm technically designed to be fully inspected at sight (art. Inoxsystem® C2 see catalogue at page 8, DWG. 2010). The slot channel is complete of a grated gully (also called grated manholes or grated floor drain)of different sizes 300x300-400X400-500X500 mm etc. including grating and siphoned outlet Ø 110mm with waste collector basket, considered insect and rat-proof. The gully may have a vertical outlet (Art. Inoxsystem ® TYPE "PGV") or an horizontal outlet (Art. Inoxsystem® TYPE "PGO") and can be positioned at the center, at the head or in a point of the channel defined by the customer. The cover grating can be standard with a 25x22 mesh, heel-guard 55x11 mesh, heavy bars 25x8 and double slot with surface in 6mm plate. Upon request you can have the edges of the channel pre-filled with our special self-attaching rigid resin (Art. Inoxsystem ® "BCR") in order to get the maximum traffic duty and robustness of the product and, thanks to the groups of connection flanges every 3 or 6 meters, depending on the transport needs (Art. Inoxsystem ® "FLC") can be produced custom with various lengths. We can also provide grafts for flushing of channel with diffusers ½ (art. Inoxsystem® IL).
