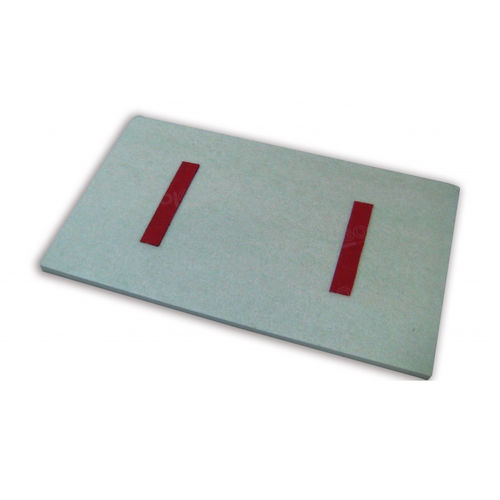

Acoustic insulation panels made of two rubber bearings inserted in a polyesther fiber mat, with a total thickness of 20 mm. The bearings are made of SBR and EPDM rubber granules and fibers compacted using polyurethane glue in a hot process, protected with a non-woven, non-stretch, synthetic membrane on one side; the dimensions of the rubber bearings are 300 mm x 50 mm³. The polyesther fiber mat has a density of 60 kg/m³ and the total dimensions of the assembled panel are 1000 mm x 600 mm.
Use
Floor
Application
Underscreed
Under application
Cls Floor, CLT floor, Timber joists floor
Type
Impact insulation
Thickness (mm)
20
Impact sound level attenuation ΔLnw (dB)
≥ 34
Superficial weight (kg/m²)
1,64
Installation
DRY
