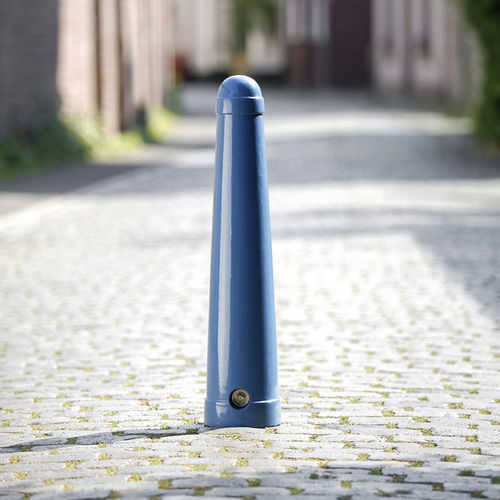

ABES Bollard 004 is a cone-shaped bollard made from cast aluminium with a circumferential ring which optically separates the top from the rest of the bollard, and a second broader circumferential ring at the base.
Mounting
Removable with 3p-Technology, comprising a ground shell, a junction piece with integrated breaking point, two clamping cones and a hex head bolt.
Alternative: concrete embedment.
Finish
– Powder coating in standard RAL colours or DB 703
Note
The surface is not as smooth as that of a stainless steel tube.
The basic package for ABES Bollard 004 with 3p-Technology contains:
– The bollard, cast aluminium, powder coated in RAL, DB 703 Glimmer grey
– Measurements (H above the ground x Ø in mm): 820 x 112/180
– Ground shell 300mm (000.001), cast iron, galvanised
– Junction piece (000.008), cast iron, galvanised
– clamping bolt set, hex head (N1+N2+hex-screw), stainless steel 1.4301 (000.004)
